Steel Column Bearing at Concrete Pier

Materials

Elements

Columns Walls Floors / Slabs Foundations / Footings Arches Site / Paving Anchors / Embeds Reinforcing Roof / Floor Openings

Connections

Rebar Splice / Development Embed Plate

About this detail

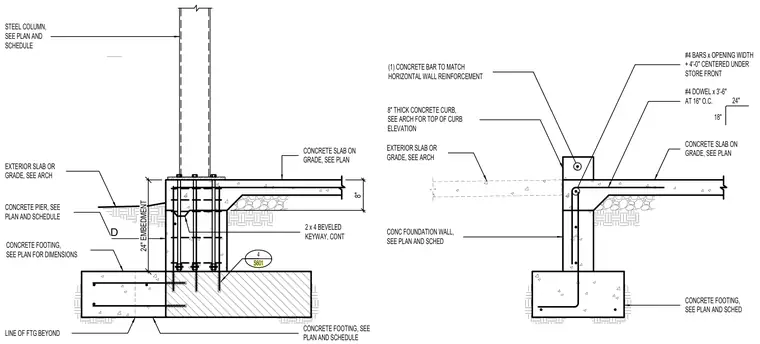

A structural steel column bears on a concrete pier supported by a continuous concrete footing. The column sits on a base plate anchored to the pier with embedded anchor bolts and is flanked by an eight-inch concrete slab on grade. A continuous two-by-four beveled keyway is provided at the slab joint. The concrete pier rests on a cast-in-place concrete footing reinforced with horizontal steel bars. Adjacent conditions show an exterior slab on grade and a concrete foundation wall with vertical and horizontal reinforcing dowels.
