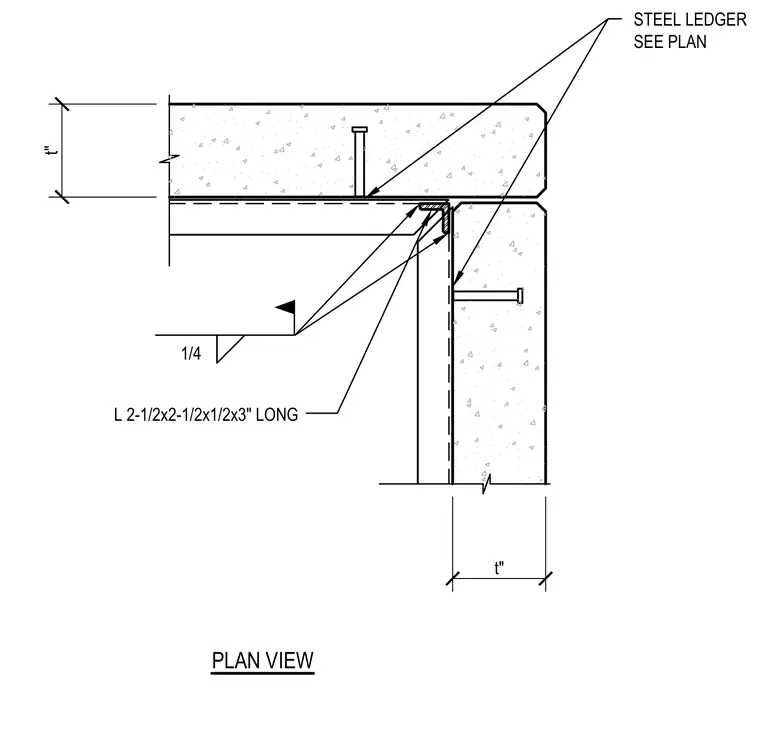

A corner connection between two concrete wall panels uses a three-inch long angle measuring two and a half by two and a half by one-half inches. A one-quarter inch fillet weld secures the angle to the steel ledger sized per plan. Embedded anchors tie the concrete panels back to the structural framework.
