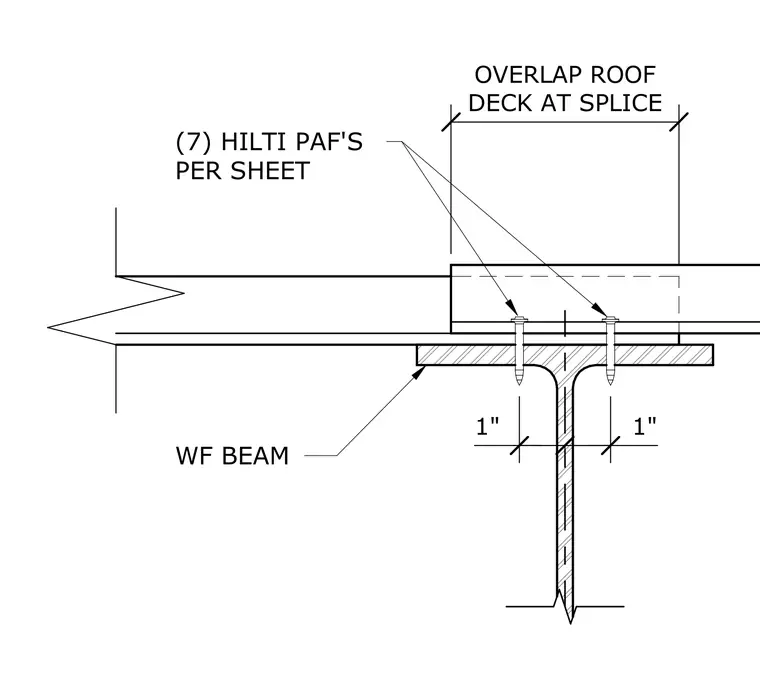

Roof deck sheets overlap at the splice location directly over the top flange of a wide flange beam. Seven Hilti powder-actuated fasteners secure each sheet to the supporting steel member. Fasteners are positioned with a one-inch edge distance from the beam web centerline on both sides of the flange.
Text on the drawing
(7) HILTI PAF'S PER SHEET WF BEAM OVERLAP ROOF DECK AT SPLICE 1" 1"
