Typical Column Base Plate Type 5

Materials

Concrete Steel Masonry / CMU

Elements

Columns Walls Bracing Anchors / Embeds Connections / Plates Roof / Floor Openings

Connections

Braced Frame Connection Base Plate / Anchorage HSS Connection Welded Connection Embed Plate

About this detail

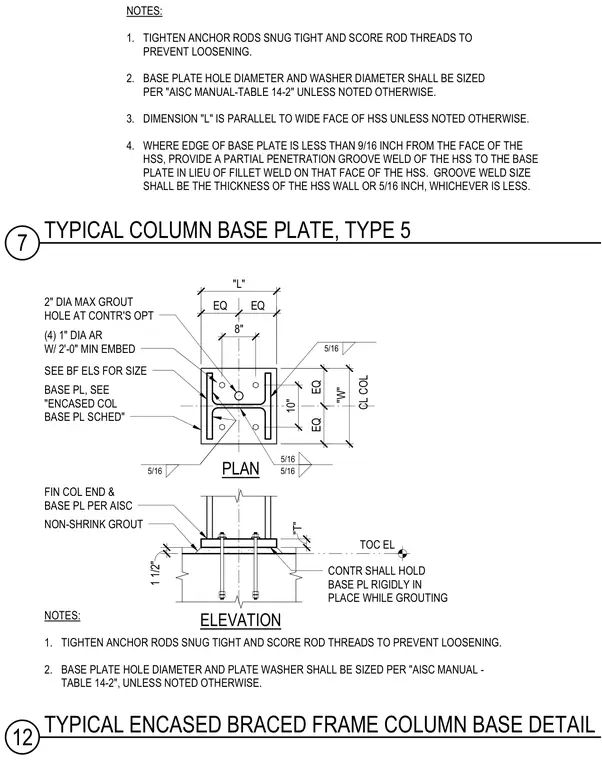

A typical column base plate connection features four one-inch diameter anchor rods with a two-foot minimum embedment. The base plate rests on a one-and-one-half-inch layer of non-shrink grout above the concrete support, with a two-inch diameter maximum grout hole provided at the contractor's option. Five-sixteenths inch welds connect the base plate to the column member, and the finished column end and base plate comply with AISC standards. Anchor rods are specified to be snug tight with scored threads to prevent loosening, and base plate hole diameters are sized per AISC Manual Table 14-2.
