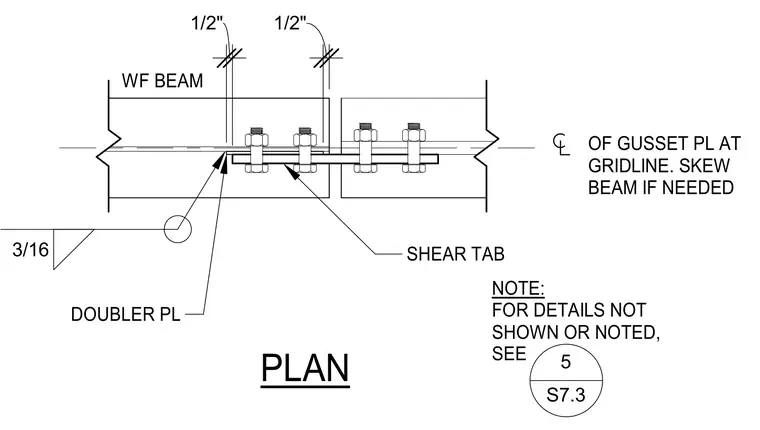

A wide flange beam connects to a gusset plate located at the structural gridline, utilizing a bolted shear tab and a half-inch doubler plate. The connection is welded with a three-sixteenth-inch fillet weld as indicated by the weld symbol. The beam is skewed if needed to match the centerline of the gusset plate. Additional standard connection details are referenced on sheet S7.3.
1/2" 1/2" DOUBLER PL OF GUSSET PL AT GRIDLINE. SKEW BEAM IF NEEDED PLAN NOTE: FOR DETAILS NOT SHOWN OR NOTED, SEE 5 S7.3 SHEAR TAB WF BEAM 3/16
