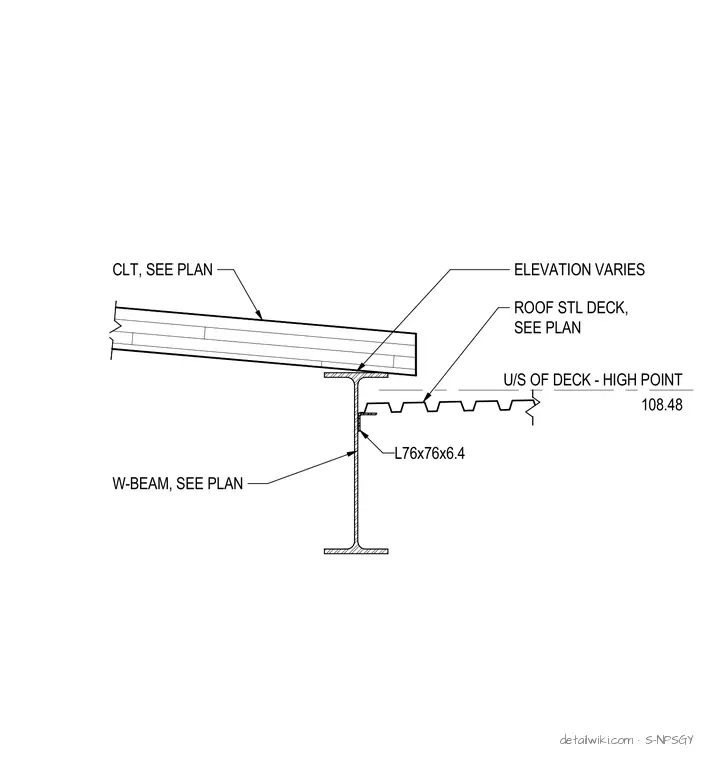

The assembly illustrates a structural steel wide-flange beam supporting a cross-laminated timber (CLT) roof panel on one side and a corrugated steel roof deck on the other. An angle section (L76x76x6.4) is connected to the web of the wide-flange beam to provide support for the roof steel deck. Elevation notes and level indicators specify the high point of the underside of the deck.
Text on the drawing
U/S OF DECK - HIGH POINT 108.48 L76x76x6.4 ROOF STL DECK, SEE PLAN ELEVATION VARIES CLT, SEE PLAN W-BEAM, SEE PLAN
