Typical Concrete Tilt-Up Panel to Panel Connection

Materials

Concrete Steel

Elements

Facades / Cladding Roofs Decks Arches Insulation Anchors / Embeds Connections / Plates

Connections

Welded Connection Deck Attachment Embed Plate

About this detail

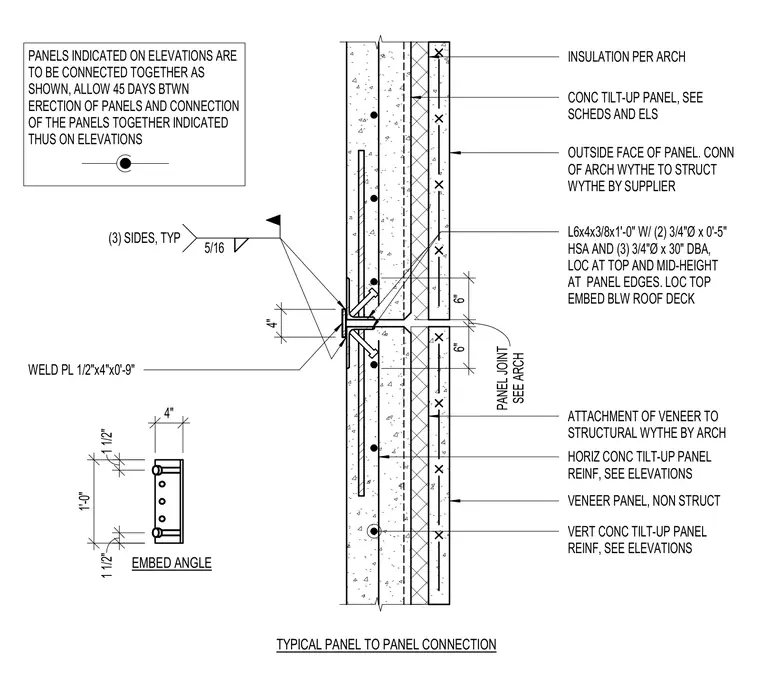

Adjacent concrete tilt-up wall panels are tied together at their vertical edges with an L6x4x3/8 by one-foot-long embed angle secured by two three-quarter-inch diameter by five-inch head stud anchors and three three-quarter-inch diameter by thirty-inch deformed bar anchors. The connection requires a half-inch by four-inch by nine-inch weld plate located at the top and mid-height of the panel edges, with the top embed placed below the roof deck. A five-sixteenths-inch fillet weld is specified on three sides typically, and a forty-five-day curing period is mandated between panel erection and final connection. The architectural wythe connects to the structural wythe via the supplier, with non-structural veneer panel attachment detailed per architectural drawings.
