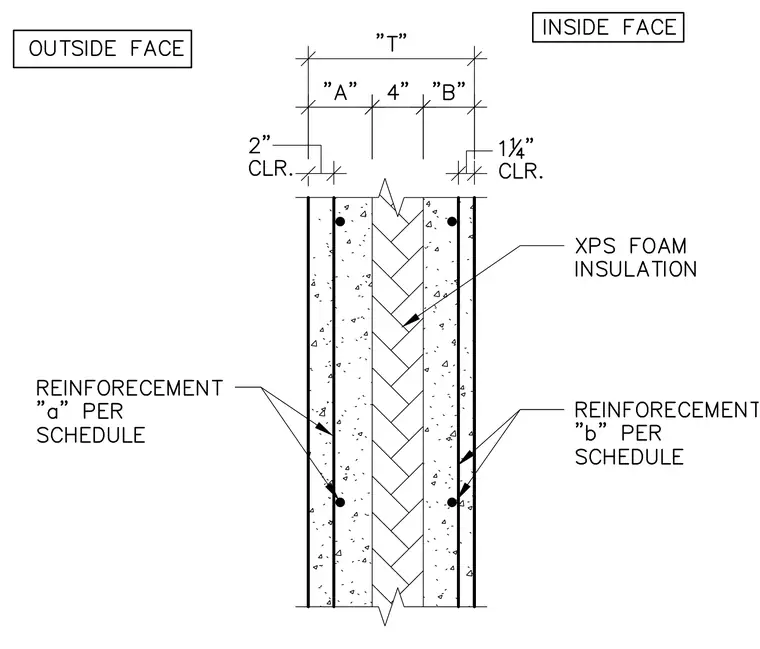

A composite panel comprises exterior and interior concrete wythes separated by a central layer of extruded polystyrene foam insulation. The outside face features reinforcement per schedule with a 2-inch clearance and a variable dimension "A". The inside face includes reinforcement per schedule with a 1 1/4-inch clearance and a variable dimension "B". The core consists of XPS foam insulation flanked by the concrete wythes, with an overall thickness designated as dimension "T" incorporating a 4-inch spacing zone.
