Drag Beam to Wide Flange Column Web

Materials

Steel

Elements

Columns Beams

Connections

Welded Connection Bolted Connection

About this detail

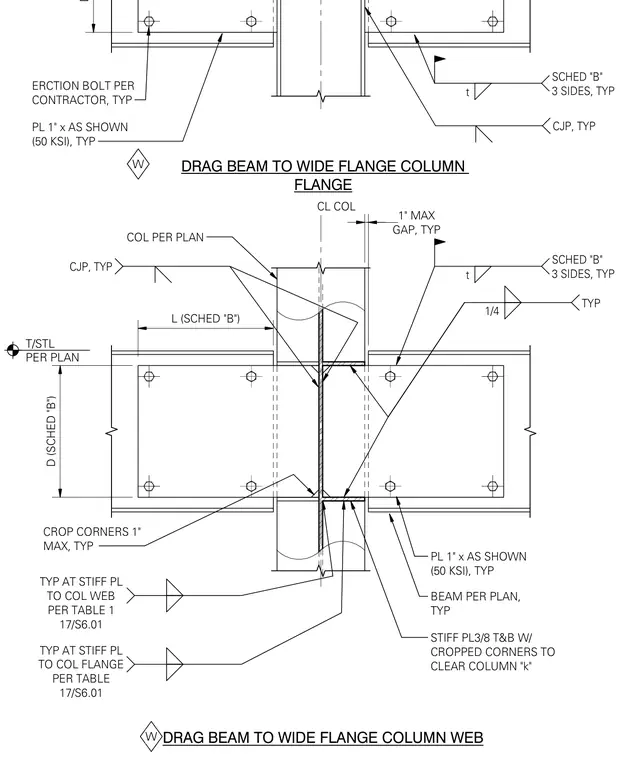

A structural drag beam connects to a wide flange column web using a one-inch thick plate of fifty KSI steel, detailed with erection bolts placed per the contractor. Three-eighths inch thick top and bottom stiffener plates feature cropped corners to clear the column k-distance. Fillet welds of one-quarter inch size connect the stiffener plates to the column web and flange according to schedule. Complete joint penetration welds secure the plates with a maximum one-inch gap typical.
