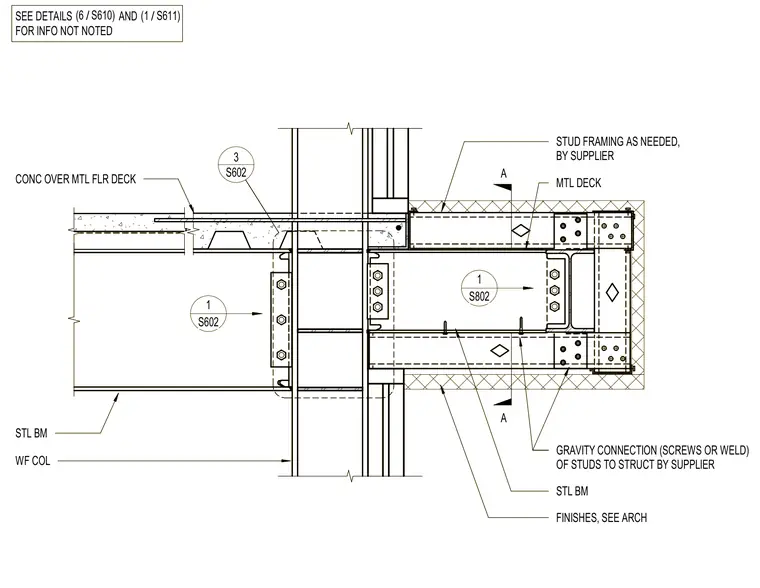

Concrete over metal floor deck bears on a wide flange steel beam framing into a wide flange steel column with bolted connections. Additional stud framing as needed is provided by the supplier and secured with a gravity connection using screws or welds to the structure. Architectural finishes are coordinated per architectural drawings.
A A CONC OVER MTL FLR DECK STL BM WF COL STL BM SEE DETAILS AND FOR INFO NOT NOTED / (1 S611) 1 S602 1 S802 S602 3 / (6 S610) FINISHES, SEE ARCH GRAVITY CONNECTION (SCREWS OR WELD) OF STUDS TO STRUCT BY SUPPLIER STUD FRAMING AS NEEDED, BY SUPPLIER MTL DECK A A CONC OVER MTL FLR DECK STL BM WF COL STL BM SEE DETAILS AND FOR INFO NOT NOTED / (1 S611) 1 S602 1 S802 S602 3 / (6 S610) FINISHES, SEE ARCH GRAVITY CONNECTION (SCREWS OR WELD) OF STUDS TO STRUCT BY SUPPLIER STUD FRAMING AS NEEDED, BY SUPPLIER MTL DECK
