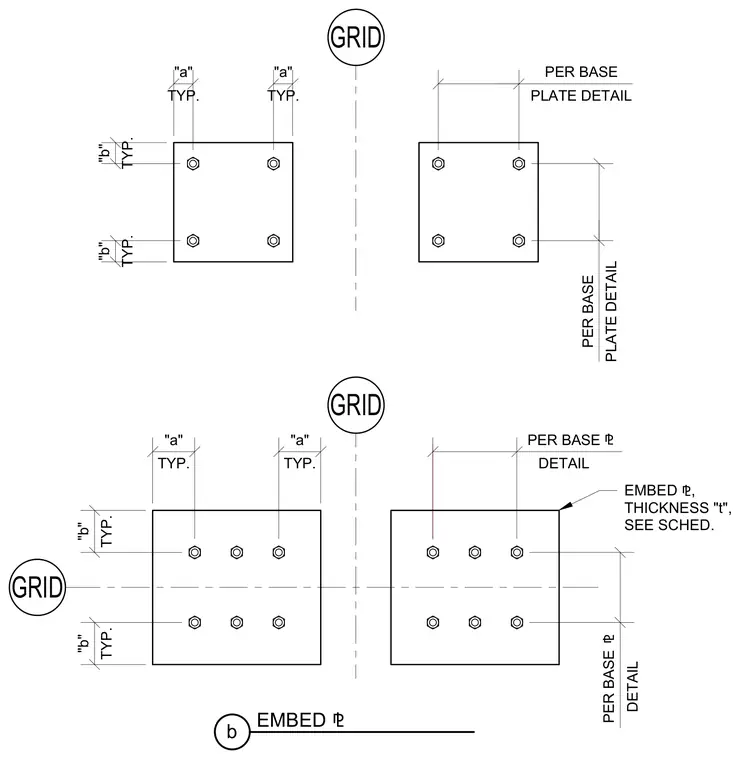

Steel embed plates are detailed with anchor bolt layouts and spacing dimensions referenced to grid lines. Thickness 't' and overall plate dimensions are sized per schedule. Typical edge distances 'a' and 'b' locate the anchor bolts within each plate assembly. Symmetrical configurations are provided for base plate connection coordination.
EMBED ⅊ , THICKNESS "t", SEE SCHED. GRID GRID EMBED ⅊ b TYP. "a" TYP. "b" TYP. "a" TYP. "b" DETAIL PER BASE ⅊ DETAIL PER BASE ⅊ GRID TYP. "a" TYP. "b" TYP. "a" TYP. "b" PLATE DETAIL PER BASE PLATE DETAIL PER BASE
