A plate measuring 1 foot 4 inches wide matches the beam flange thickness and provides for 2 inches of minimum metal deck bearing. A three-eighths-inch typical fillet weld secures the assembly. A hollow structural section column or member is positioned with specified clearances including 1 1/2 inch minimum and 1 inch minimum typical dimensions.

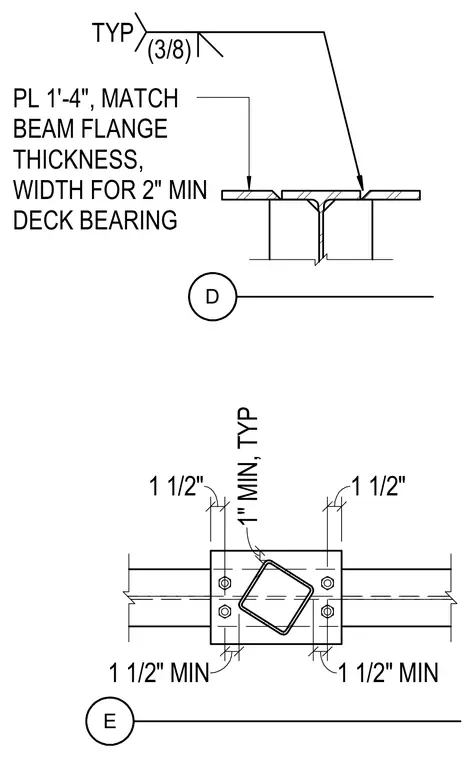

D E PL 1'-4", MATCH BEAM FLANGE THICKNESS, WIDTH FOR 2" MIN DECK BEARING (3/8) TYP 1 1/2" 1 1/2" MIN 1 1/2" MIN 1 1/2" 1" MIN, TYP
