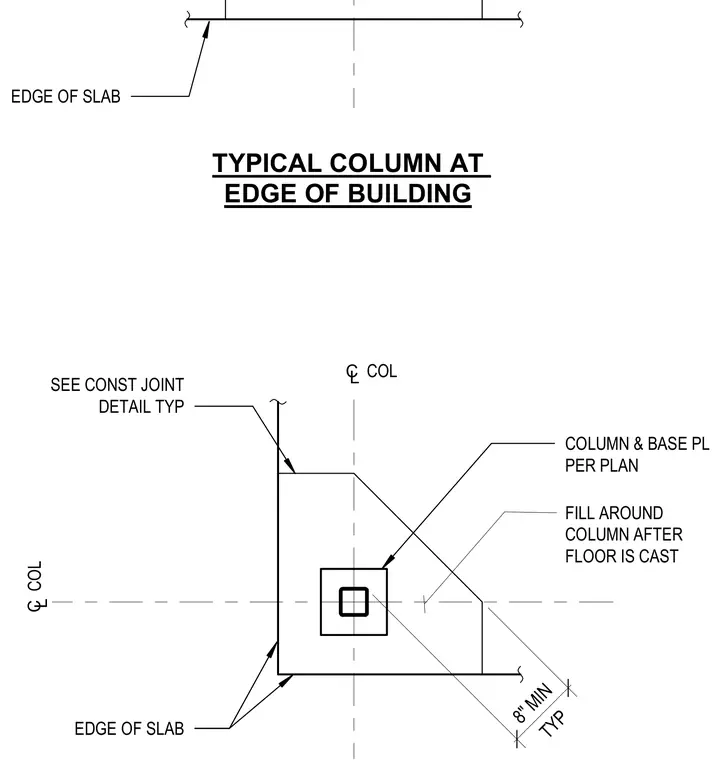

This plan detail shows a typical structural column and base plate positioned at the edge of a building slab with an eight-inch minimum edge distance. The void around the column is filled after the floor slab is cast, coordinated with a typical construction joint detail.
TYPICAL COLUMN AT EDGE OF BUILDING EDGE OF SLAB COLUMN & BASE PL PER PLAN FILL AROUND COLUMN AFTER FLOOR IS CAST COL CL SEE CONST JOINT DETAIL TYP COL CL TYP 8" MIN EDGE OF SLAB
