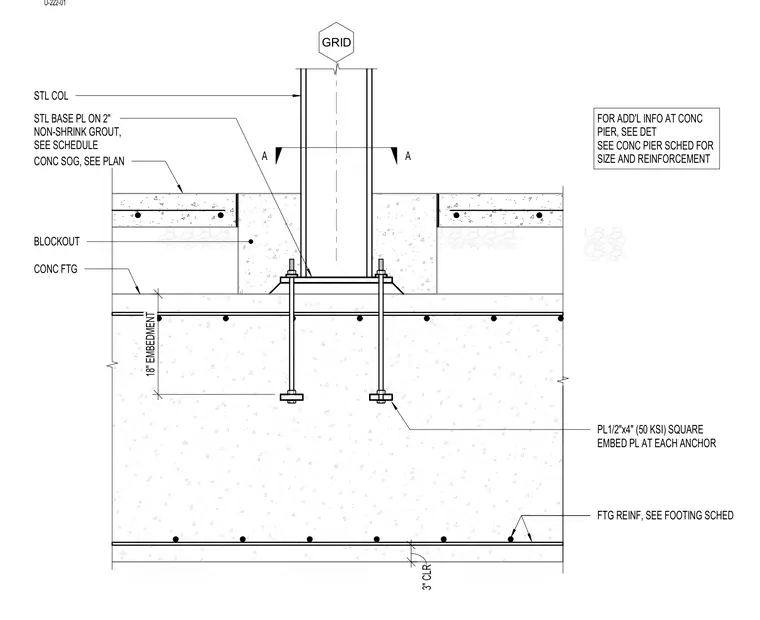

A steel column bears on a steel base plate set on two inches of non-shrink grout over a concrete footing. Anchor bolts extend eighteen inches into the concrete footing and feature a one-half by four-inch square embed plate at each anchor. A blockout accommodates the concrete slab-on-grade adjacent to the column pier. Reinforcement within the concrete footing is sized per the footing schedule and maintains a three-inch clear cover.
A A GRID CONC FTG BLOCKOUT CONC SOG, SEE PLAN STL BASE PL ON 2" NON-SHRINK GROUT, SEE SCHEDULE STL COL FTG REINF, SEE FOOTING SCHED PL1/2"x4" (50 KSI) SQUARE EMBED PL AT EACH ANCHOR 18" EMBEDMENT 3" CLR FOR ADD'L INFO AT CONC PIER, SEE DET SEE CONC PIER SCHED FOR SIZE AND REINFORCEMENT U-222-01
