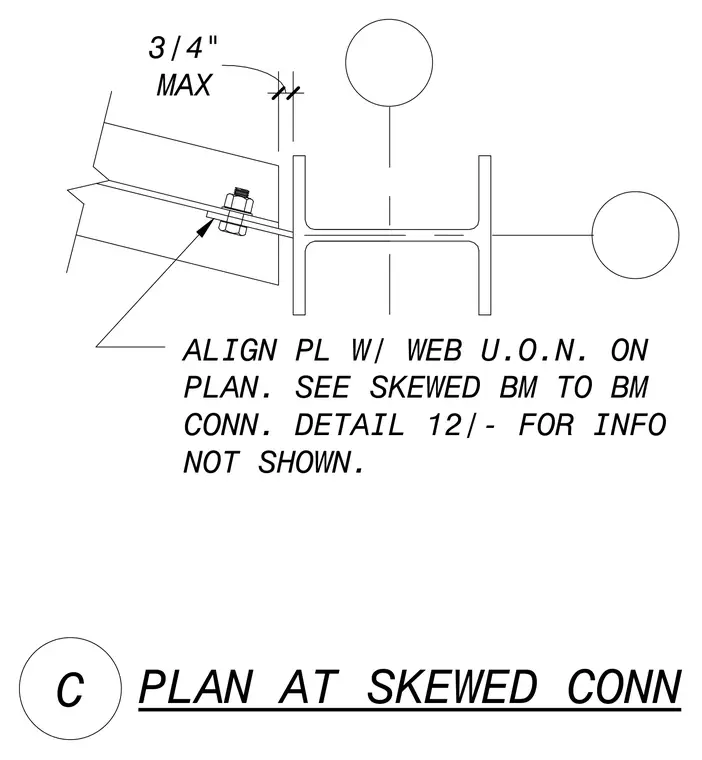

A structural steel beam frames into a supporting wide flange member on a skew in plan view. The connection plate aligns with the web unless otherwise noted on the plan, maintaining a maximum three-quarter-inch clearance gap. Fasteners secure the skewed member web to the connection plate.
MAX 3/4" ALIGN PL W/ WEB U.O.N. ON PLAN. SEE SKEWED BM TO BM CONN. DETAIL 12/- FOR INFO NOT SHOWN. C PLAN AT SKEWED CONN
