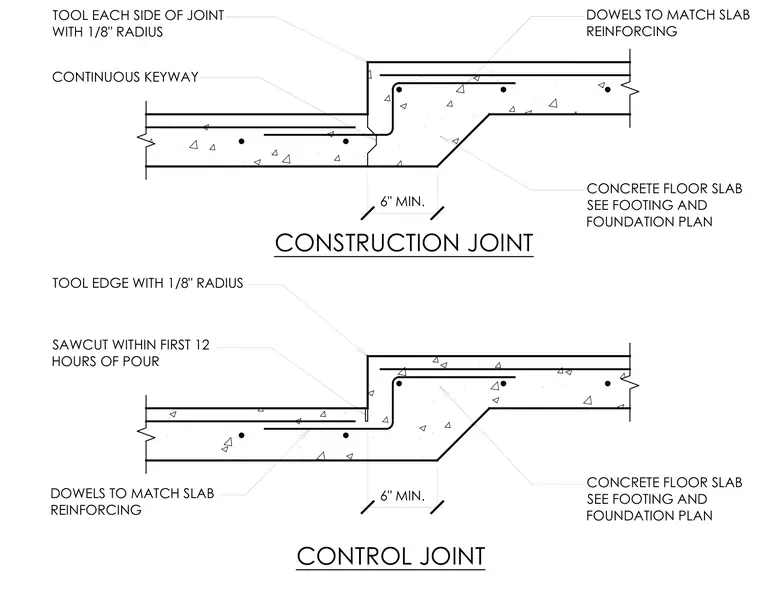

A concrete floor slab transition steps down with a minimum six-inch dimension, reinforced by dowels matching the main slab reinforcing. The construction joint features a continuous keyway and edges tooled on each side with a one-eighth-inch radius. The control joint incorporates a sawcut executed within the first twelve hours of the pour alongside a tooled edge with a one-eighth-inch radius. Both slab segments are sized per the footing and foundation plan.
SAWCUT WITHIN FIRST 12 HOURS OF POUR TOOL EDGE WITH 1/8" RADIUS CONCRETE FLOOR SLAB SEE FOOTING AND FOUNDATION PLAN CONCRETE FLOOR SLAB SEE FOOTING AND FOUNDATION PLAN CONTINUOUS KEYWAY TOOL EACH SIDE OF JOINT WITH 1/8" RADIUS DOWELS TO MATCH SLAB REINFORCING DOWELS TO MATCH SLAB REINFORCING CONSTRUCTION JOINT CONTROL JOINT 6" MIN. 6" MIN.
