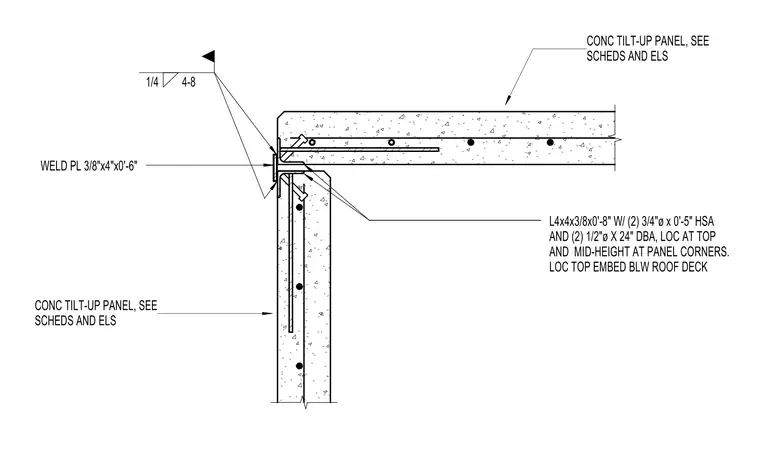

The concrete tilt-up panel corner connection is formed using an L4x4x3/8 by zero-foot eight-inch structural steel angle equipped with two three-quarter-inch diameter by zero-foot five-inch headed stud anchors and two half-inch diameter by twenty-four-inch deformed bar anchors, located at the top and mid-height at panel corners. The top embed is positioned below the roof deck and features a three-eighths by four-inch by zero-foot six-inch weld plate connected with a quarter-inch fillet weld.
L4x4x3/8x0'-8" W/ (2) 3/4"ø x 0'-5" HSA AND (2) 1/2"ø X 24" DBA, LOC AT TOP AND MID-HEIGHT AT PANEL CORNERS. LOC TOP EMBED BLW ROOF DECK WELD PL 3/8"x4"x0'-6" 1/4 4-8 CONC TILT-UP PANEL, SEE SCHEDS AND ELS CONC TILT-UP PANEL, SEE SCHEDS AND ELS
