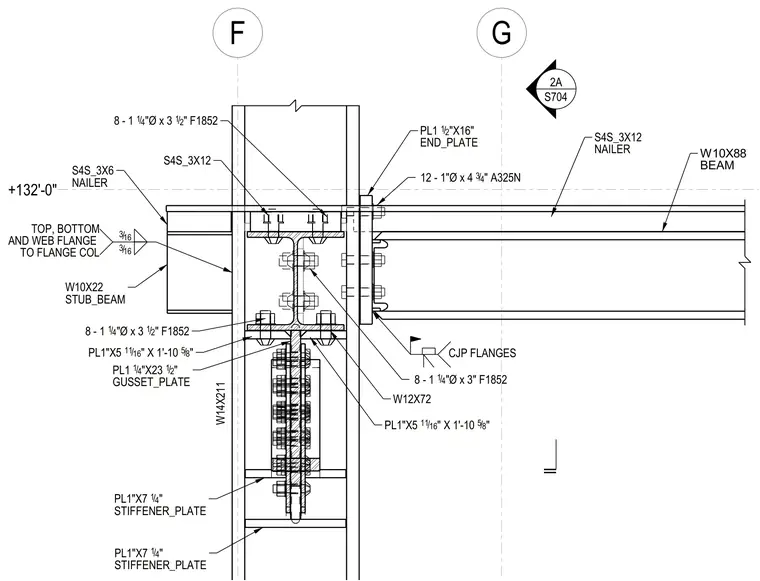

A W10x88 floor beam connects to a W14x211 column assembly via a 1 1/2-inch end plate secured with twelve 1-inch diameter A325N bolts at the flange and eight 1 1/4-inch diameter F1852 bolts at the web. A stub beam (W10x22) frames into the opposite side of the column with top, bottom, and web flange welds using 3/16-inch fillet welds. A gusset plate measuring 1 1/4-inch by 23 1/2-inches is attached with 1 1/4-inch diameter F1852 bolts, supplemented by horizontal 1-inch by 7 1/4-inch stiffener plates inside the column web. Wood nailers (S4S 3x12 and S4S 3x6) are fastened along the top flanges of the steel beams.
F +132'-0" G W12X72 W10X88 BEAM W14X211 2A S704 S4S_3X6 NAILER 316 / 316 / TOP, BOTTOM AND WEB FLANGE TO FLANGE COL W10X22 STUB_BEAM PL1"X5 11 16 / " X 1'-10 5 8 / " PL1 1 4 / "X23 1 2 / " GUSSET_PLATE PL1"X7 1 4 / " STIFFENER_PLATE 12 - 1"Ø x 4 3 4 / " A325N S4S_3X12 CJP FLANGES S4S_3X12 NAILER PL1 1 2 / "X16" END_PLATE PL1"X7 1 4 / " STIFFENER_PLATE 8 - 1 1 4 / "Ø x 3 1 2 / " F1852 8 - 1 1 4 / "Ø x 3 1 2 / " F1852 8 - 1 1 4 / "Ø x 3" F1852 PL1"X5 11 16 / " X 1'-10 5 8 / "
