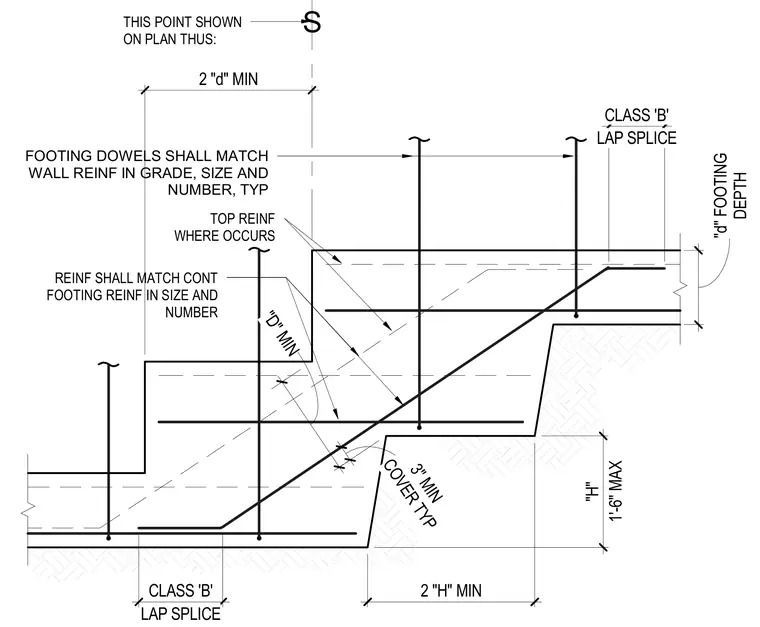

Continuous footing reinforcement matches in size and number while footing dowels match wall reinforcement in grade, size, and number. Rebar lap splices are designated as Class B with a minimum lap length alongside required concrete cover and footing depth dimensions. Footing steps adhere to maximum height limits with proper horizontal and vertical lap dimensions.
S REINF SHALL MATCH CONT FOOTING REINF IN SIZE AND NUMBER FOOTING DOWELS SHALL MATCH WALL REINF IN GRADE, SIZE AND NUMBER, TYP TOP REINF WHERE OCCURS THIS POINT SHOWN ON PLAN THUS: 2 "d" MIN LAP SPLICE CLASS 'B' 2 "H" MIN DEPTH "d" FOOTING 1'-6" MAX "H" "D" MIN COVER TYP 3" MIN LAP SPLICE CLASS 'B'
