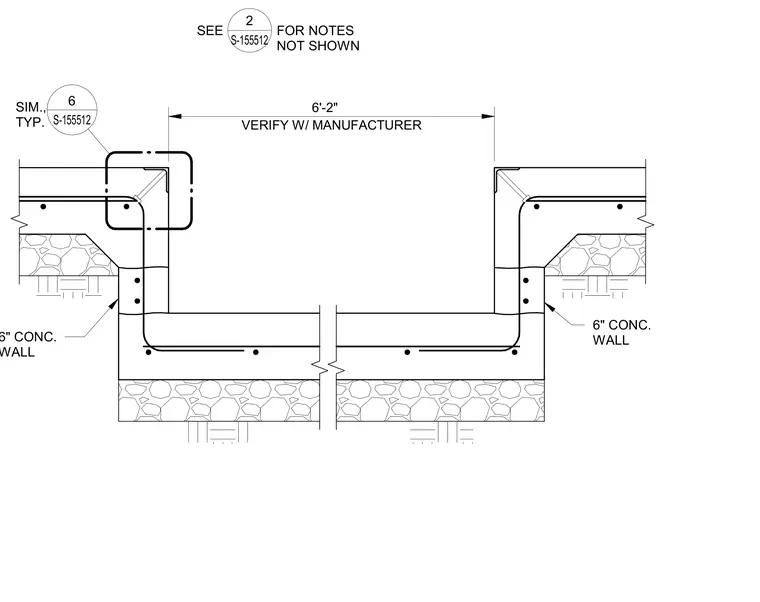

This structural detail shows a six-inch concrete wall pit with continuous reinforcing steel bars and a clear span dimensioned to six feet two inches. The six-inch concrete walls extend downward into a formed concrete base bearing on compacted subgrade. A detail reference bubble directs the builder to sheet S-155512 for additional notes.
SIM., TYP. 6" CONC. WALL 6" CONC. WALL VERIFY W/ MANUFACTURER 6'-2" S-155512 6 SEE FOR NOTES NOT SHOWN 2 S-155512
