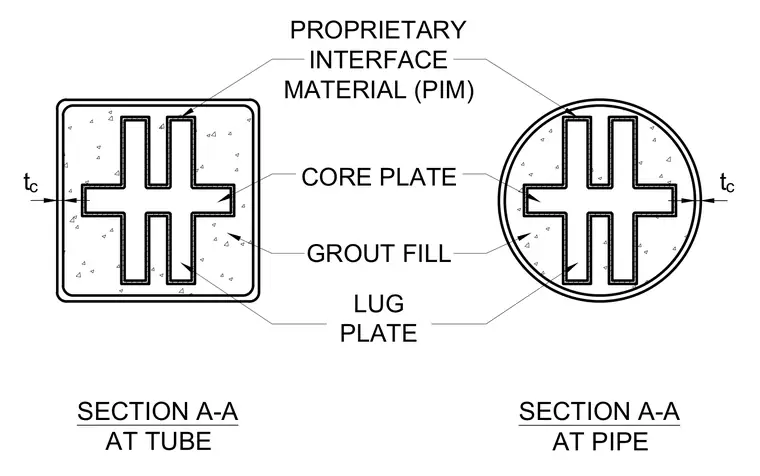

A core plate and lug plate assembly is encased in grout fill within a structural steel tube and pipe section. A proprietary interface material lines the inner perimeter of the tube and pipe against the embedded plates. Dimension indicators designate the clearance thickness for the interface material.
LUG PLATE PROPRIETARY INTERFACE MATERIAL (PIM) t c t c GROUT FILL CORE PLATE SECTION A-A AT TUBE SECTION A-A AT PIPE
