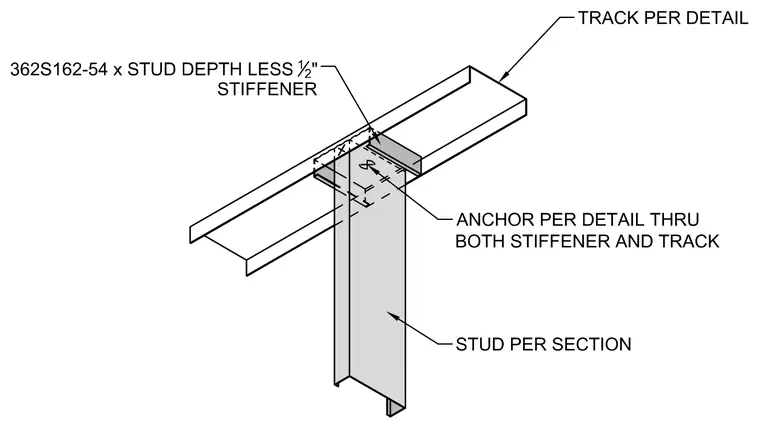

A cold-formed steel stud framing junction features a 362S162-54 stud stiffener cut to stud depth less one-half inch, positioned within the top track. The track is sized per detail, and a designated anchor fastens through both the stiffener and the track. The main stud below is sized per section.
