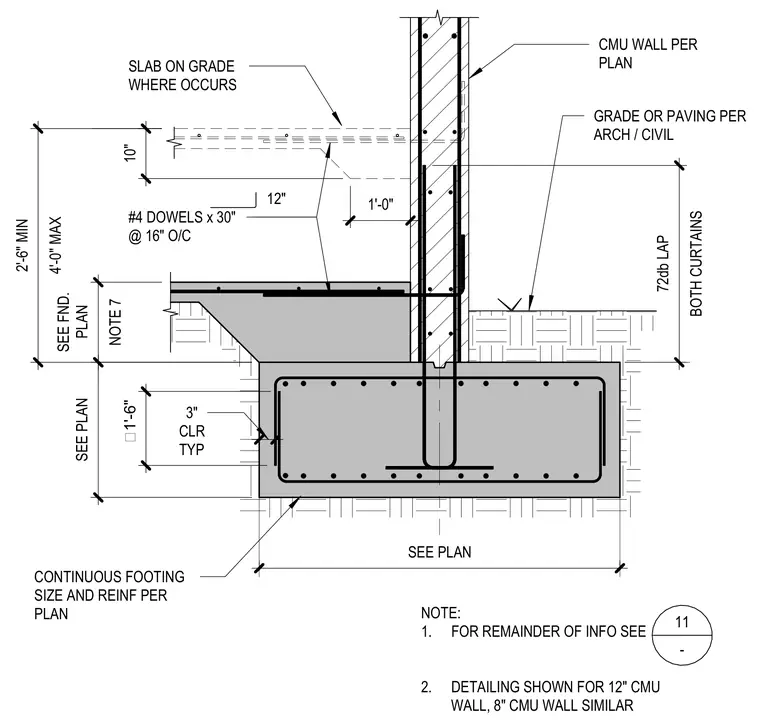

A concrete masonry unit wall bears on a continuous reinforced concrete footing with sizing and reinforcing specified per plan. Number 4 vertical dowels measuring 30 inches long are spaced at 16 inches on center with a 72-diameter lap splice into both masonry curtains. A concrete slab on grade intersects the wall where applicable with a 3-inch typical clear cover maintained at the footing perimeter. Exterior grade or paving transitions adjacent to the foundation wall according to architectural and civil drawings.
CMU WALL PER PLAN SLAB ON GRADE WHERE OCCURS GRADE OR PAVING PER ARCH / CIVIL #4 DOWELS x 30" @ 16" O/C 10" 12" 4'-0" MAX 2'-6" MIN NOTE 7 SEE FND. PLAN BOTH CURTAINS 72db LAP 3" CLR TYP SEE PLAN NOTE: 1. FOR REMAINDER OF INFO SEE 2. DETAILING SHOWN FOR 12" CMU WALL, 8" CMU WALL SIMILAR 1'-6" SEE PLAN 11 - 1'-0" CONTINUOUS FOOTING SIZE AND REINF PER PLAN
