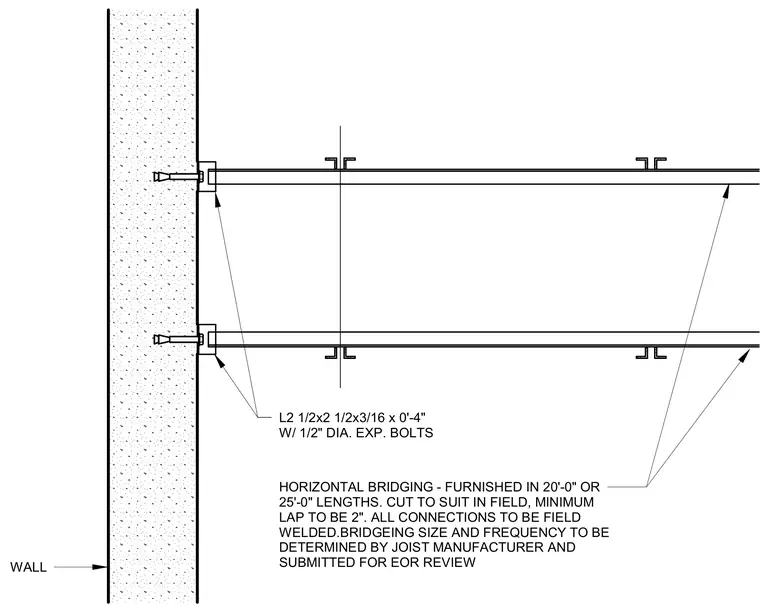

This connection details horizontal bridging anchored to a structural wall using two and a half by two and a half by three-sixteenths inch by four inch angles secured with one-half inch diameter expansion bolts. The horizontal bridging is furnished in twenty-foot or twenty-five-foot lengths, cut to suit in the field, and requires a minimum lap of two inches. All connections are field welded, and the bridging size and frequency are determined by the joist manufacturer and submitted for engineer of record review.
L2 1/2x2 1/2x3/16 x 0'-4" W/ 1/2" DIA. EXP. BOLTS HORIZONTAL BRIDGING - FURNISHED IN 20'-0" OR 25'-0" LENGTHS. CUT TO SUIT IN FIELD, MINIMUM LAP TO BE 2". ALL CONNECTIONS TO BE FIELD WELDED.BRIDGEING SIZE AND FREQUENCY TO BE DETERMINED BY JOIST MANUFACTURER AND SUBMITTED FOR EOR REVIEW WALL
