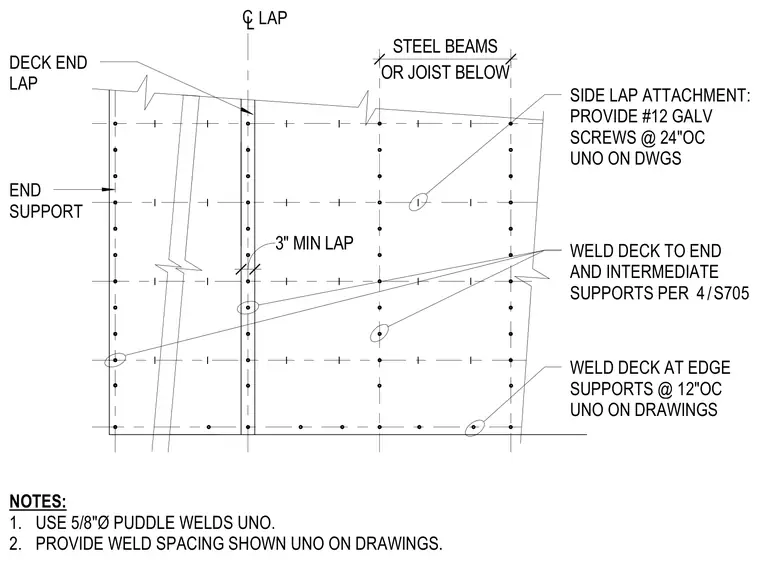

Metal roof deck is attached to underlying steel beams or joists with five-eighths-inch diameter puddle welds at end and intermediate supports at twelve inches on center unless noted otherwise. Side laps are fastened with number twelve galvanized screws spaced at twenty-four inches on center unless noted otherwise. A three-inch minimum end lap is required at deck splices over supports.
3" MIN LAP OR JOIST BELOW STEEL BEAMS DECK END LAP END SUPPORT SIDE LAP ATTACHMENT: PROVIDE #12 GALV SCREWS @ 24"OC UNO ON DWGS WELD DECK TO END AND INTERMEDIATE SUPPORTS PER WELD DECK AT EDGE SUPPORTS @ 12"OC UNO ON DRAWINGS NOTES: 1. USE 5/8"Ø PUDDLE WELDS UNO. 2. PROVIDE WELD SPACING SHOWN UNO ON DRAWINGS. C L LAP / 4 S705 4 S705
