Structural · S-NKXZZ

Elevator Rail Support at Concrete Slab Edge

Materials

Steel Timber / Wood

Elements

Floors / Slabs Decks Anchors / Embeds

Connections

HSS Connection Bolted Connection Embed Plate

About this detail

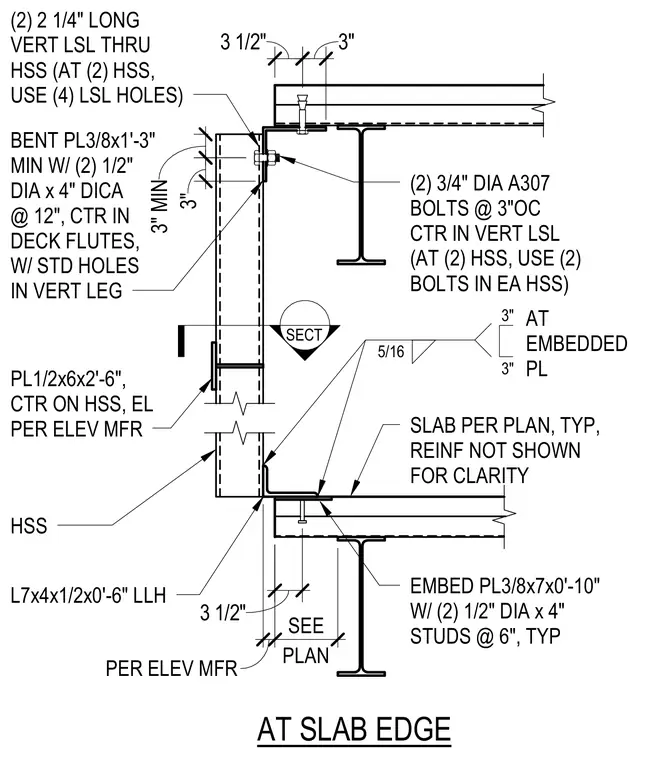

An elevator rail support assembly is anchored at a concrete slab edge using hollow structural sections, bent plates, and structural angles. The assembly connects to an embed plate measuring three-eighths by seven by ten inches with two one-half-inch diameter by four-inch studs spaced at six inches on center, welded with a five-sixteenth-inch fillet weld. A bent plate measuring three-eighths by one foot three inches minimum is anchored with two one-half-inch diameter by four-inch anchors centered in the deck flutes at twelve inches on center. Two three-quarter-inch diameter A307 bolts spaced at three inches on center secure the vertical laminated strand lumber member to the hollow structural section, utilizing two bolts in each hollow structural section. An angle measuring seven by four by one-half by six inches supports the slab edge, centered on the hollow structural section per the elevator manufacturer requirements.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
