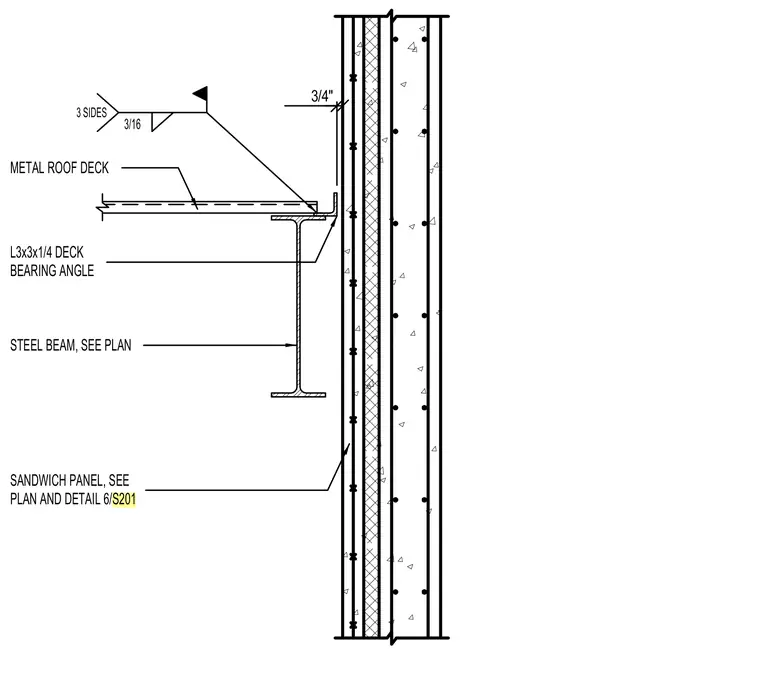

A metal roof deck terminates at a concrete sandwich panel wall and bears upon a steel beam. An L3x3x1/4 deck bearing angle is welded to the steel beam with a three-sixteenths inch fillet weld on three sides. A three-quarter inch clearance or dimension is maintained between the deck angle and the adjacent sandwich panel. The steel beam and sandwich panel sizes are sized per plan and referenced to detail 6/S201.
SANDWICH PANEL, SEE PLAN AND DETAIL 6/S201 STEEL BEAM, SEE PLAN METAL ROOF DECK 3/4" L3x3x1/4 DECK BEARING ANGLE 3 SIDES 3/16
