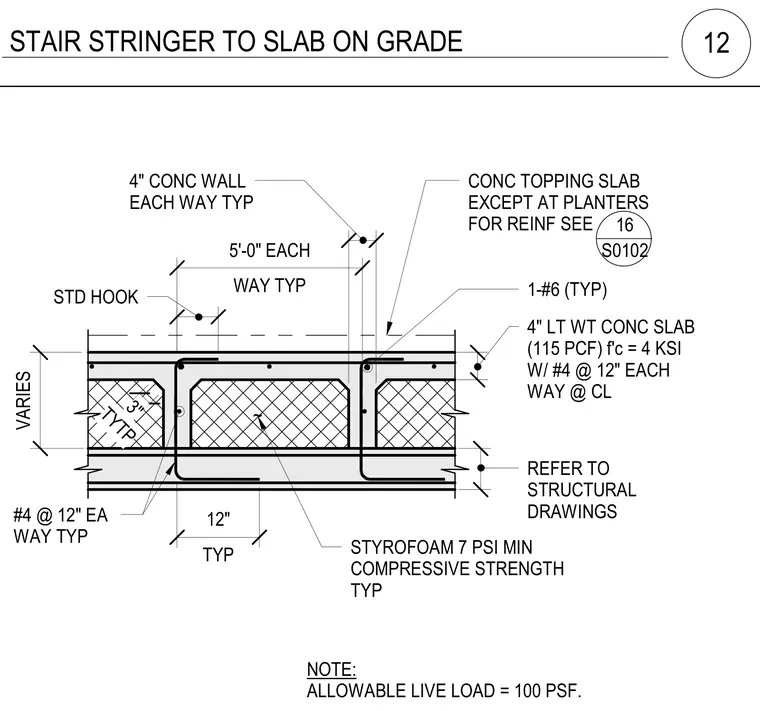

A stair stringer connects to a slab on grade featuring a four-inch lightweight concrete slab with an f'c of four thousand pounds per square inch and a density of one hundred fifteen pounds per cubic foot. The assembly is reinforced with number four bars spaced at twelve inches each way at center line, alongside styrofoam insulation with a seven pound per square inch minimum compressive strength. Additional reinforcement includes number six bars and standard hooks with four-inch concrete walls on each way. A concrete topping slab is provided with reinforcing specified on structural drawings, and an allowable live load of one hundred pounds per square foot is maintained.
1-#6 (TYP) ~ #4 @ 12" EA WAY TYP NOTE: ALLOWABLE LIVE LOAD = 100 PSF. REFER TO STRUCTURAL DRAWINGS 4" LT WT CONC SLAB (115 PCF) f'c = 4 KSI W/ #4 @ 12" EACH WAY @ CL STYROFOAM 7 PSI MIN COMPRESSIVE STRENGTH TYP WAY TYP 5'-0" EACH VARIES CONC TOPPING SLAB EXCEPT AT PLANTERS FOR REINF SEE 16 S0102 4" CONC WALL EACH WAY TYP TYP 12" STD HOOK TYTP 3" STAIR STRINGER TO SLAB ON GRADE 12
