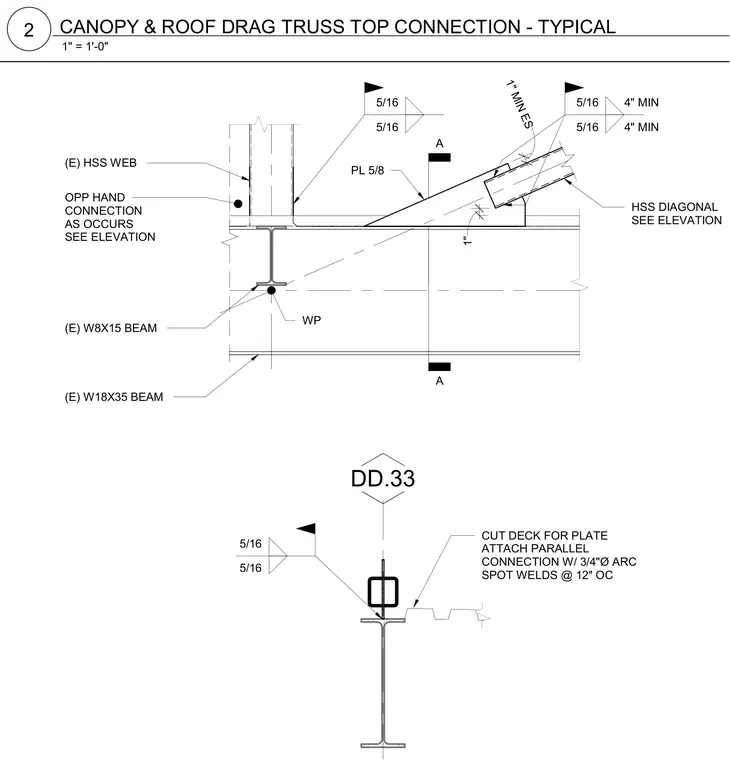

An HSS diagonal member frames into a five-eighths-inch gusset plate welded to an existing W8x15 beam, which sits above an existing W18x35 beam. The gusset plate is attached with five-sixteenths-inch fillet welds. An existing HSS web member connects above with opposite-hand detailing as required. Metal deck is cut to clear the plate and attached with three-quarter-inch diameter arc spot welds spaced at twelve inches on center.
WP A A 5/16 4" MIN 5/16 4" MIN (E) HSS WEB OPP HAND CONNECTION AS OCCURS SEE ELEVATION (E) W8X15 BEAM (E) W18X35 BEAM HSS DIAGONAL SEE ELEVATION 5/16 5/16 1" PL 5/8 1" MIN ES DD.33 5/16 5/16 CUT DECK FOR PLATE ATTACH PARALLEL CONNECTION W/ 3/4"Ø ARC SPOT WELDS @ 12" OC 1" = 1'-0" 2 CANOPY & ROOF DRAG TRUSS TOP CONNECTION - TYPICAL
