Elevator spreader beam connections anchor hollow structural section members to concrete walls and concrete slabs using an embed plate measuring 1/2 inch by 8 inches by 1 foot 2 inches equipped with four 1/2 inch diameter by 6 inch studs. Connection angles sized at L4x3x5/16 by 0'-6" on each side feature slotted holes and are fastened using two 7/8 inch diameter ASTM A325 bolts. Additional reinforcement includes number 4 U-bars provided where dimensions Ht or He are six inches or less, along with supplemental number 4 rebar spaced at 4 inches on center.

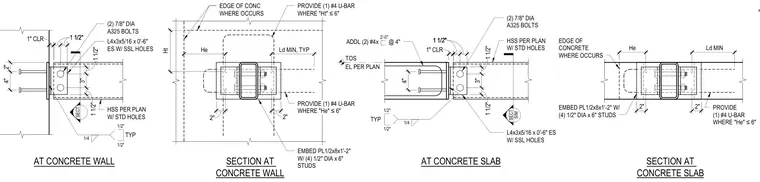

SECT SECT SIM 1" CLR HSS PER PLAN W/ STD HOLES AT CONCRETE WALL SECTION AT CONCRETE WALL EMBED PL1/2x8x1'-2" W/ (4) 1/2" DIA x 6" STUDS L4x3x5/16 x 0'-6" ES W/ SSL HOLES (2) 7/8" DIA A325 BOLTS HSS PER PLAN W/ STD HOLES AT CONCRETE SLAB 1/4 4" EL PER PLAN TOS ADDL (2) #4x @ 4" 2'-0" 1 1/2" 3" 1 1/2" 1/2" 1/2" TYP 1 1/2" 1 1/2" 1" CLR 1 1/2" 1 1/2" 1/4 1/2" 1/2" TYP L4x3x5/16 x 0'-6" ES W/ SSL HOLES 1 1/2" 3" 1 1/2" 2" 4" (2) 7/8" DIA A325 BOLTS 9" 9" He Ht 2" 2" 9 1/4" Ld MIN, TYP PROVIDE (1) #4 U-BAR WHERE "Ht" ≤6" PROVIDE (1) #4 U-BAR WHERE "He" ≤6" SECTION AT CONCRETE SLAB 2" 2" 5 3/4" 9 1/4" He Ld MIN EMBED PL1/2x8x1'-2" W/ (4) 1/2" DIA x 6" STUDS EDGE OF CONCRETE WHERE OCCURS PROVIDE (1) #4 U-BAR WHERE "He" ≤6" EDGE OF CONC WHERE OCCURS
