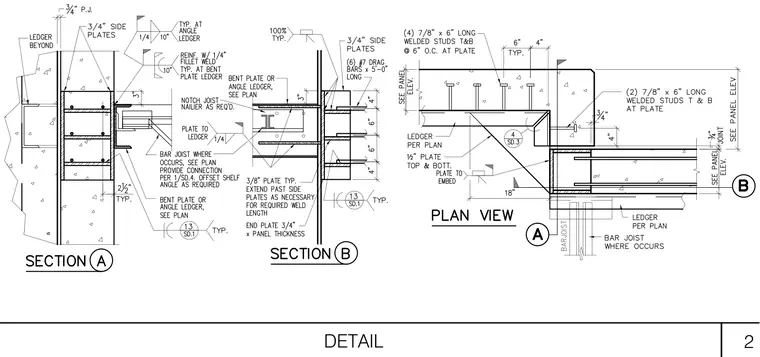

Section A and Section B show precast wall panel connections incorporating three-quarter-inch side plates, three-quarter-inch project clearances, and reinforced one-quarter-inch fillet welds at bent plate ledgers. Bar joists frame into the assembly where indicated, supported by angle ledgers and three-quarter-inch side plates extending past the panel thickness. The plan view details embedded half-inch top and bottom plates anchored with four seven-eighths-inch by six-inch long welded studs at six inches on center, alongside six number seven drag bars five feet long.
