Structural · S-NK4FS

Deck Span Perpendicular or Skewed to Wall

Materials

Reinforced Concrete Steel Timber / Wood Glass / Glazing

Elements

Walls Floors / Slabs Decks Entrances Site / Paving Reinforcing

Connections

Welded Connection Shear Stud / Composite Rebar Splice / Development Deck Attachment

About this detail

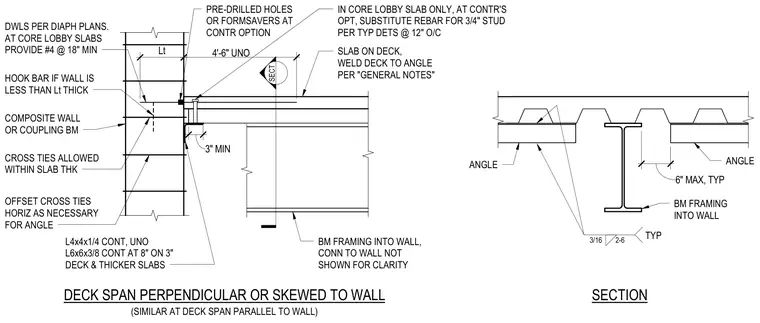

A concrete-filled metal deck spans perpendicular or skewed to a composite wall or coupling beam, supported by a continuous structural steel angle. The continuous angle is specified as L4x4x1/4 or L6x6x3/8 depending on the deck depth and slab thickness, anchored via pre-drilled holes or formsavers with dowels per diaphragm plans. Shear studs are welded through the deck into the angle, with an option in core lobby slabs to substitute rebar hooks for three-quarter inch studs at twelve inches on center. Horizontal cross ties are offset as necessary within the slab thickness, maintaining a three-inch minimum clearance. A companion section details the beam framing into the wall with typical angle connections and weld symbols.
