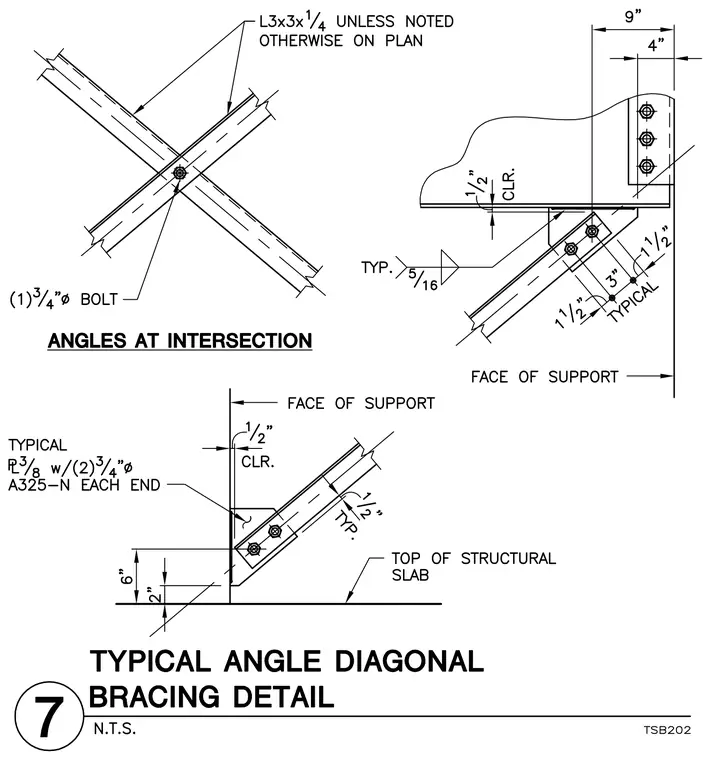

Typical angle diagonal bracing connections utilize L3x3x1/4 structural angles unless noted otherwise on the plan. Intersection points are fastened with one three-quarter-inch diameter bolt. End connections incorporate three-eighths-inch thick gusset plates secured with two three-quarter-inch diameter A325-N bolts at each end. Typical weld sizes of five-sixteenths inch connect the gusset plates to the supporting members, maintaining one-half inch clearance where specified. Dimensions indicate specific edge distances and spacings relative to the face of support and the top of the structural slab.
