A hollow structural section brace connects to a wide-flange steel beam using three-quarter-inch plates welded with five-sixteenth-inch fillet welds. The wide-flange beam bears onto an existing concrete wall and is secured with seven-eighth-inch-diameter through-bolts spaced at twelve inches on center, filled with adhesive. Additional three-quarter-inch by six-inch plates are anchored at twelve inches on center as indicated. Five-sixteenth-inch fillet welds secure the structural steel assembly at the wall interface.

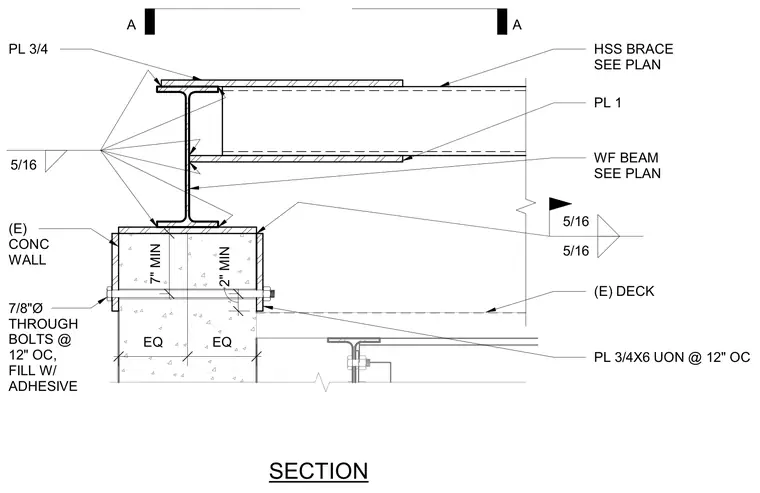

PL 3/4 HSS BRACE SEE PLAN PL 1 WF BEAM SEE PLAN (E) CONC WALL SECTION A A 5/16 7" MIN 5/16 5/16 (E) DECK 7/8"Ø THROUGH BOLTS @ 12" OC, FILL W/ ADHESIVE PL 3/4X6 UON @ 12" OC EQ EQ 2" MIN
