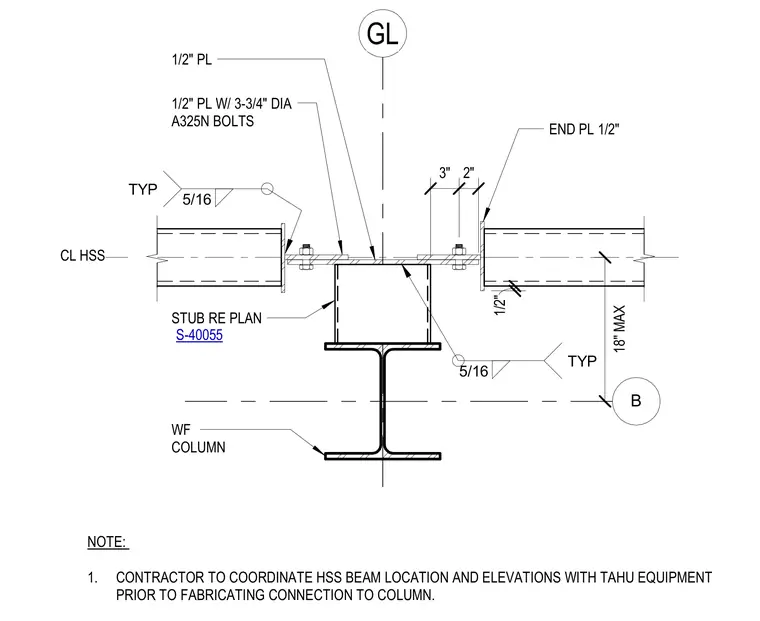

Hollow structural section beams connect to a wide flange column stub using a half-inch end plate welded with five-sixteenth-inch typical fillet welds. Half-inch connection plates secure each side with three three-quarter-inch diameter A325N bolts. A wide flange column supports the assembly per plan. The contractor must coordinate hollow structural section beam locations and elevations with Tahu equipment prior to fabricating the column connection.
B GL S-40055 NOTE: 1. CONTRACTOR TO COORDINATE HSS BEAM LOCATION AND ELEVATIONS WITH TAHU EQUIPMENT PRIOR TO FABRICATING CONNECTION TO COLUMN. 5/16 TYP CL HSS 3" 2" WF COLUMN STUB RE PLAN 5/16 TYP 1/2" PL W/ 3-3/4" DIA A325N BOLTS 1/2" PL END PL 1/2" 18" MAX 1/2"
