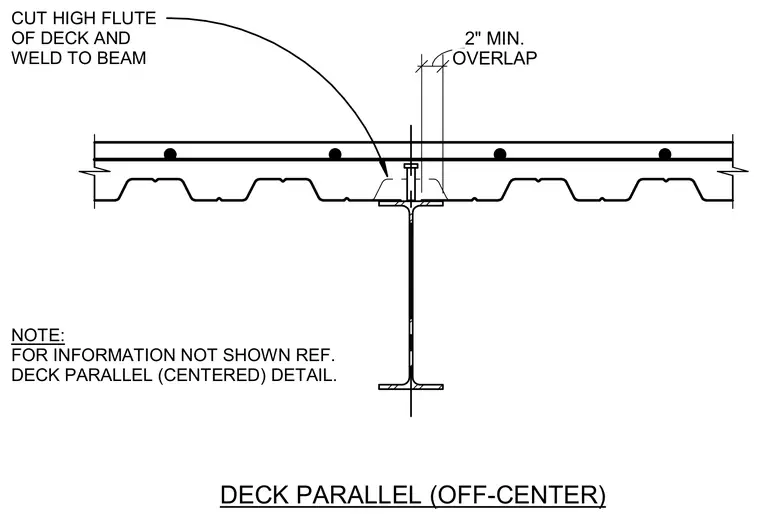

The metal deck runs parallel to the supporting steel beam with an off-center alignment. The high flute of the deck is cut and welded directly to the top flange of the beam. A minimum two-inch overlap is maintained at the sidelap connection over the beam flange.
CUT HIGH FLUTE OF DECK AND WELD TO BEAM OVERLAP 2" MIN. DECK PARALLEL (OFF-CENTER) NOTE: FOR INFORMATION NOT SHOWN REF. DECK PARALLEL (CENTERED) DETAIL.
