Structural · S-NJKPC

Typical Concrete Coupling Beam Section and Reinforcement

Elements

About this detail

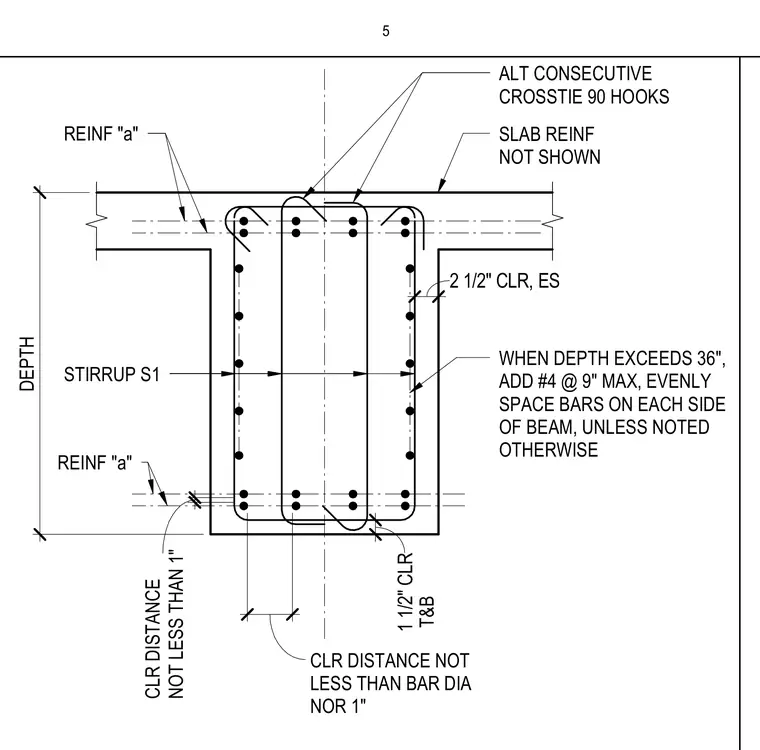

A reinforced concrete coupling beam cross-section features top and bottom reinforcement labeled as reinf "a" and stirrups S1. Alternate consecutive crossties feature 90-degree hooks at the top joint. Side face reinforcement requires adding number four bars at nine inches maximum spacing when the total depth exceeds thirty-six inches. Clearances are specified as one and a half inches top and bottom, and two and a half inches on each side, with minimum clear distance rules enforced between adjacent bars.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
