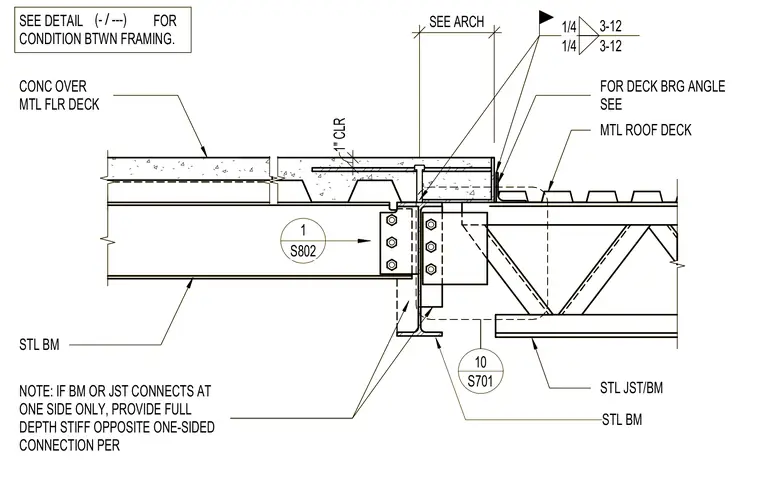

A structural steel beam frames into a supporting steel column or girder, carrying a concrete slab over a metal floor deck on one side and a metal roof deck supported by a steel joist or beam on the other. A one-inch clearance is maintained between the concrete slab edge and the adjacent framing. A full-depth stiffener plate is provided opposite the one-sided connection when a beam or joist connects to only one side of the support. A deck bearing angle supports the metal roof deck adjacent to the structural framing.
STL BM NOTE: IF BM OR JST CONNECTS AT ONE SIDE ONLY, PROVIDE FULL DEPTH STIFF OPPOSITE ONE-SIDED CONNECTION PER CONC OVER MTL FLR DECK FOR DECK BRG ANGLE SEE STL JST/BM MTL ROOF DECK 1/4 3-12 1/4 3-12 SEE ARCH STL BM 1" CLR S701 10 SEE DETAIL FOR CONDITION BTWN FRAMING. / (- ---) 1 S802 STL BM NOTE: IF BM OR JST CONNECTS AT ONE SIDE ONLY, PROVIDE FULL DEPTH STIFF OPPOSITE ONE-SIDED CONNECTION PER CONC OVER MTL FLR DECK FOR DECK BRG ANGLE SEE STL JST/BM MTL ROOF DECK 1/4 3-12 1/4 3-12 SEE ARCH STL BM 1" CLR S701 10 SEE DETAIL FOR CONDITION BTWN FRAMING. / (- ---) 1 S802
