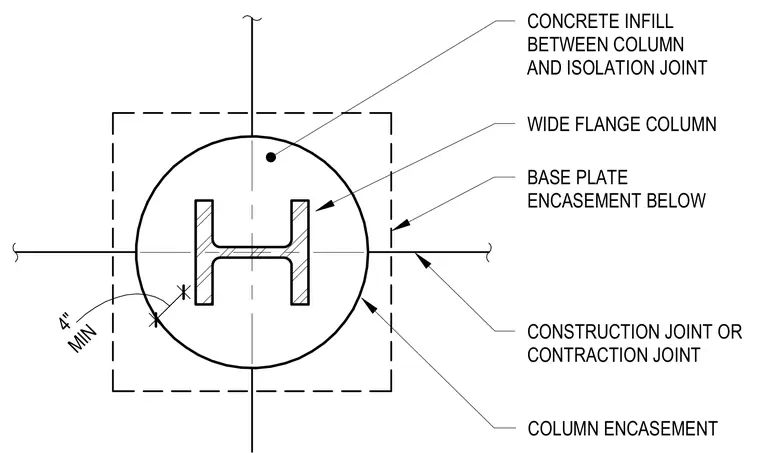

A wide flange steel column with a base plate is surrounded by concrete infill and a circular column encasement. The assembly is intersected by a construction joint or contraction joint. A minimum 4-inch dimension is maintained between the encasement and surrounding elements.
WIDE FLANGE COLUMN CONSTRUCTION JOINT OR CONTRACTION JOINT COLUMN ENCASEMENT CONCRETE INFILL BETWEEN COLUMN AND ISOLATION JOINT BASE PLATE ENCASEMENT BELOW MIN 4"
