Cold-formed metal studs terminate below the roof deck with a one-inch gap. A stud track matches the stud gauge, topped with an additional sixteen-gauge continuous track above the wall. The assembly fastens to the roof deck using number ten screws at twelve inches on center or half-inch diameter puddle welds at twenty-four inches on center. The continuous track width is sized to the stud width plus one-sixteenth of an inch with a three-inch flange.

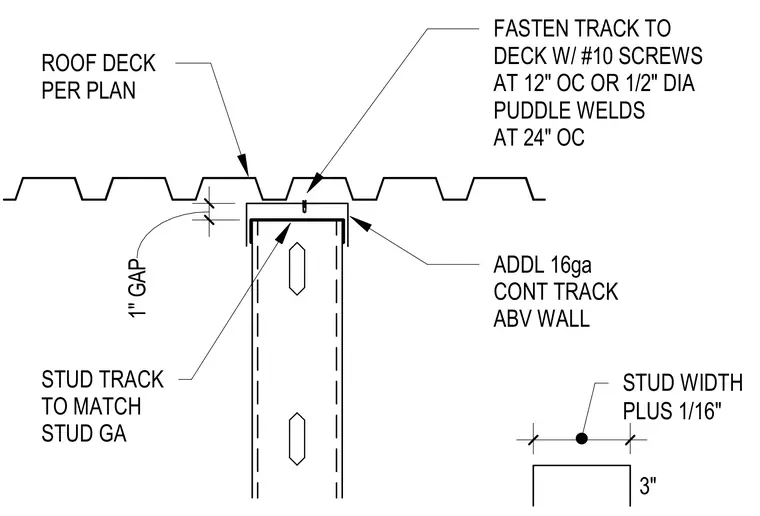

STUD TRACK TO MATCH STUD GA ADDL 16ga CONT TRACK ABV WALL PLUS 1/16" STUD WIDTH 3" FASTEN TRACK TO DECK W/ #10 SCREWS AT 12" OC OR 1/2" DIA PUDDLE WELDS AT 24" OC ROOF DECK PER PLAN 1" GAP
