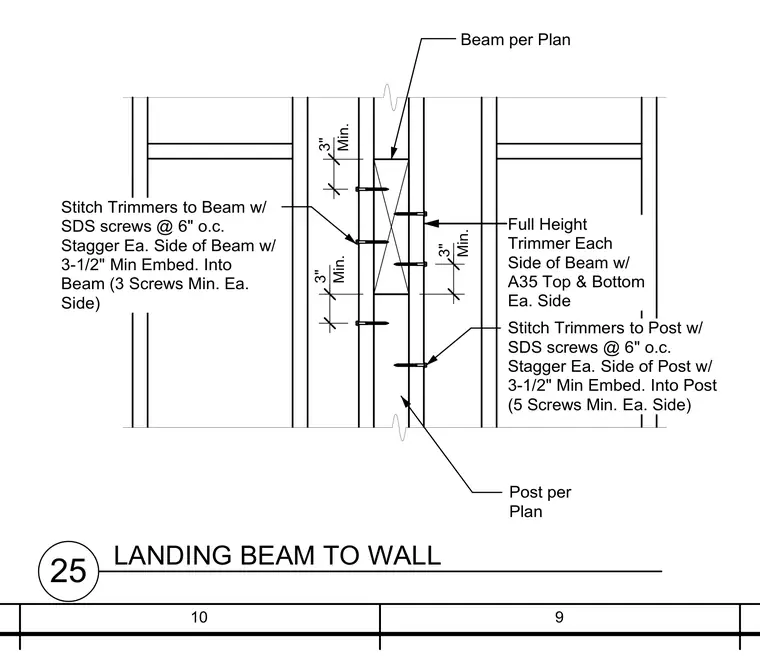

A structural framing connection between a landing beam and a wall post utilizes full-height trimmers on each side of the beam. The trimmers are secured to the post with self-drilling screws spaced at six inches on center, staggered on each side with a minimum three-and-a-half-inch embedment and a minimum of five screws per side. The trimmers are similarly attached to the beam with self-drilling screws at six inches on center, requiring a minimum three-inch embedment and a minimum of three screws per side. Simpson Strong-Tie A35 framing angles are installed at the top and bottom on each side of the beam. Minimum three-inch edge clearances and end distances are maintained throughout the assembly.
10 9 25 LANDING BEAM TO WALL Beam per Plan Full Height Trimmer Each Side of Beam w/ A35 Top & Bottom Ea. Side Post per Plan Stitch Trimmers to Post w/ SDS screws @ 6" o.c. Stagger Ea. Side of Post w/ 3-1/2" Min Embed. Into Post (5 Screws Min. Ea. Side) 3" Min. 3" Min. Stitch Trimmers to Beam w/ SDS screws @ 6" o.c. Stagger Ea. Side of Beam w/ 3-1/2" Min Embed. Into Beam (3 Screws Min. Ea. Side) 3" Min.
