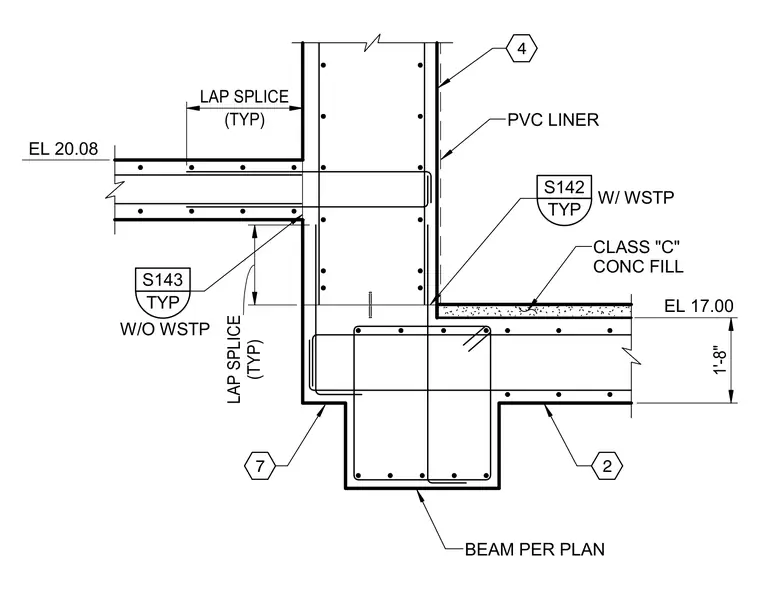

A reinforced concrete wall intersects a concrete beam per plan at elevation 20.08 and elevation 17.00. A continuous PVC liner applies to the interior face of the concrete wall with a waterstop detail referenced at typical sheet S142 and S143 locations. The concrete beam features a class C concrete fill with a lap splice length of 1'-8".
TYP S142 TYP S143 4 7 2 W/O WSTP (TYP) LAP SPLICE 1'-8" CLASS "C" CONC FILL W/ WSTP (TYP) LAP SPLICE BEAM PER PLAN PVC LINER EL 17.00 EL 20.08
