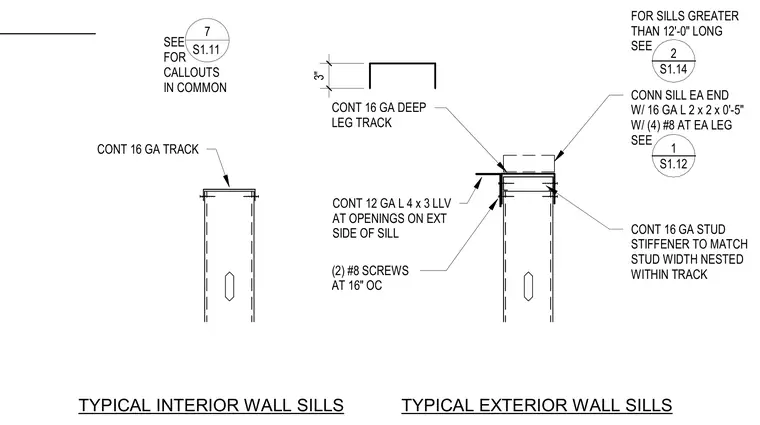

Continuous sixteen-gauge tracks form the base of the wall assembly with nested sixteen-gauge stud stiffeners matching the stud width. Each end of the sill connects with a sixteen-gauge, two-by-two-inch by five-inch angle fastened with four number eight screws at each leg. Two number eight screws at sixteen inches on center secure the tracks. Continuous twelve-gauge four-by-three-inch long leg angles are positioned at openings on the exterior side of the sill for openings and sills greater than twelve feet long.
CONN SILL EA END W/ 16 GA L 2 x 2 x 0'-5" W/ (4) #8 AT EA LEG SEE _____ 1 S1.12 SEE FOR CALLOUTS IN COMMON 7 S1.11 CONT 16 GA DEEP LEG TRACK 3" (2) #8 SCREWS AT 16" OC CONT 16 GA STUD STIFFENER TO MATCH STUD WIDTH NESTED WITHIN TRACK CONT 16 GA TRACK TYPICAL INTERIOR WALL SILLS TYPICAL EXTERIOR WALL SILLS FOR SILLS GREATER THAN 12'-0" LONG SEE CONT 12 GA L 4 x 3 LLV AT OPENINGS ON EXT SIDE OF SILL _____ 2 S1.14
