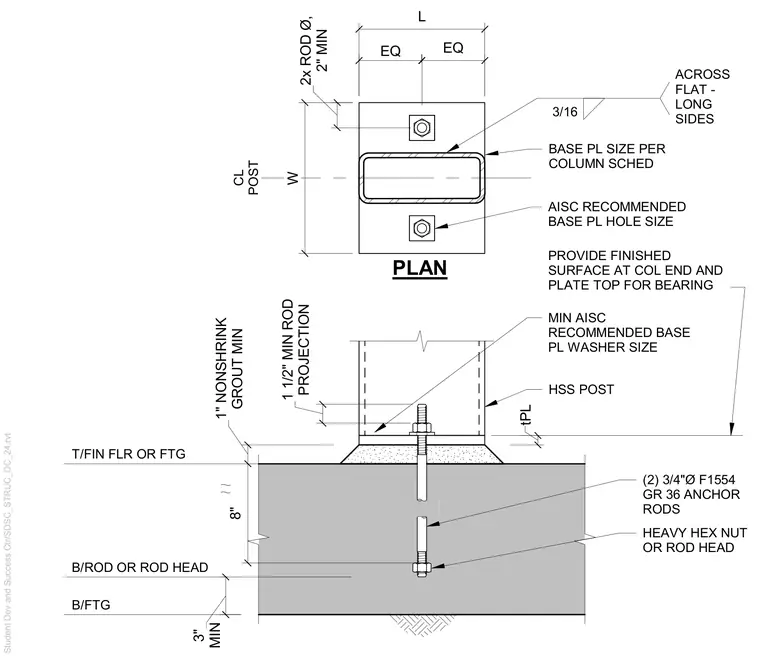

An HSS post bears onto a steel base plate of thickness tPL, secured with two 3/4-inch-diameter ASTM F1554 Grade 36 anchor rods with heavy hex nuts or rod heads embedded in concrete. A 3/16-inch fillet weld connects the HSS post to the base plate along the long sides, leaving the short sides unwelded. A finished bearing surface is provided at the column end and plate top. The assembly rests on a minimum 1-inch thick layer of nonshrink grout over the footing, with anchor rods having a minimum 1 1/2-inch projection and a minimum 3-inch clearance from the bottom of footing.
B/FTG T/FIN FLR OR FTG B/ROD OR ROD HEAD 3/16 ACROSS FLAT - LONG SIDES BASE PL SIZE PER COLUMN SCHED CL POST (2) 3/4"Ø F1554 GR 36 ANCHOR RODS HEAVY HEX NUT OR ROD HEAD HSS POST PLAN MIN 3" AISC RECOMMENDED BASE PL HOLE SIZE MIN AISC RECOMMENDED BASE PL WASHER SIZE PROVIDE FINISHED SURFACE AT COL END AND PLATE TOP FOR BEARING L W EQ tPL PROJECTION 1 1/2" MIN ROD 8" GROUT MIN 1" NONSHRINK 2" MIN 2x ROD Ø, EQ
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
