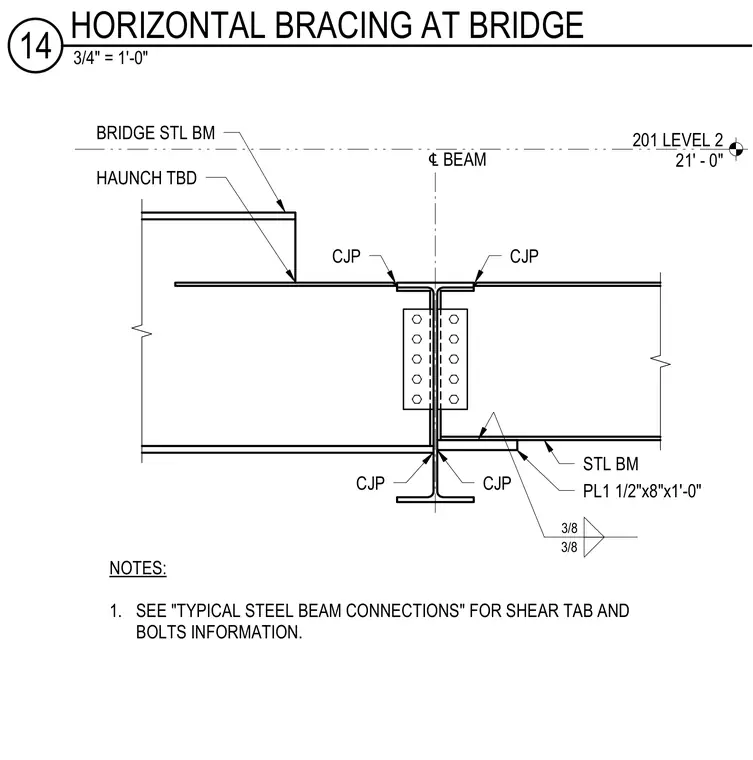

Structural steel horizontal bracing connection at a bridge framing level. A bridge steel beam connects to the main structural steel beam web via a 1 1/2" x 8" x 1'-0" plate with complete joint penetration welds along the beam flanges. A to-be-determined haunch sits above the bridge steel beam framing. The connection requires reference to typical steel beam connections for shear tab and bolt sizing specifications.
201 LEVEL 2 21' - 0" 3/8 3/8 NOTES: 1. SEE "TYPICAL STEEL BEAM CONNECTIONS" FOR SHEAR TAB AND BOLTS INFORMATION. STL BM PL1 1/2"x8"x1'-0" BRIDGE STL BM ℄ BEAM CJP CJP CJP CJP HAUNCH TBD 3/4" = 1'-0" 14 HORIZONTAL BRACING AT BRIDGE
