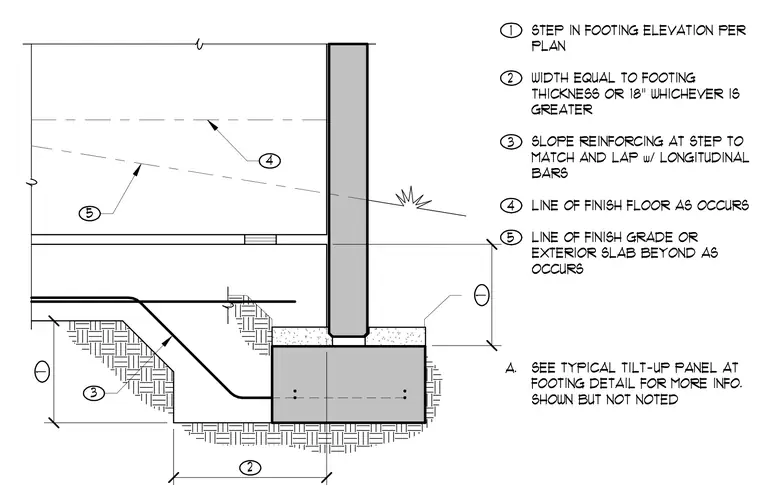

A tilt-up concrete wall panel bears upon a continuous concrete footing featuring a vertical step in the foundation elevation per plan. The footing step width equals the footing thickness or measures a minimum of eighteen inches, whichever is greater. Longitudinal reinforcing bars slope at the footing step to match and lap with adjacent longitudinal bars. The line of the finish floor and the line of finish grade or exterior slab beyond occur at their respective elevations relative to the foundation assembly.
3 4 5 1 2 1 1 STEP IN FOOTING ELEVATION PER PLAN 2 WIDTH EQUAL TO FOOTING THICKNESS OR 18" WHICHEVER IS GREATER 3 SLOPE REINFORCING AT STEP TO MATCH AND LAP w/ LONGITUDINAL BARS 4 LINE OF FINISH FLOOR AS OCCURS 5 LINE OF FINISH GRADE OR EXTERIOR SLAB BEYOND AS OCCURS A. SEE TYPICAL TILT-UP PANEL AT FOOTING DETAIL FOR MORE INFO. SHOWN BUT NOT NOTED
