Steel deck conditions are oriented both perpendicular and parallel to edge beams. The assembly incorporates structural steel beams supporting steel deck sized per plan, with continuous twelve-gauge bent plates welded to the beams. Additional support is provided by L4x4x1/4 angles spaced at eight feet maximum on center per detail. Fastening includes three-quarter-inch diameter anchors at twelve inches on center with specified maximum overhang dimensions.

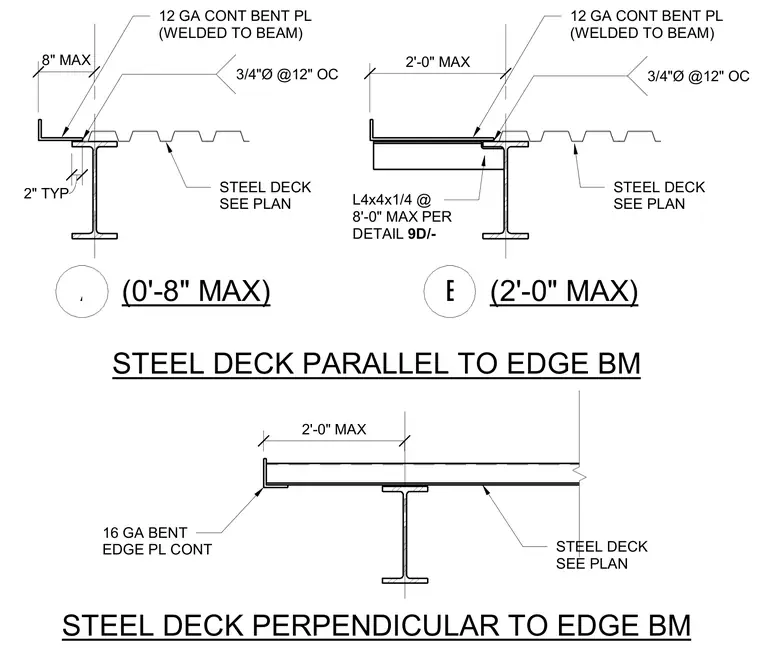

STEEL DECK PERPENDICULAR TO EDGE BM STEEL DECK PARALLEL TO EDGE BM 16 GA BENT EDGE PL CONT STEEL DECK SEE PLAN STEEL DECK SEE PLAN 12 GA CONT BENT PL (WELDED TO BEAM) 8" MAX 2'-0" MAX 3/4"Ø @12" OC STEEL DECK SEE PLAN 12 GA CONT BENT PL (WELDED TO BEAM) 2'-0" MAX L4x4x1/4 @ 8'-0" MAX PER DETAIL 9D/- 3/4"Ø @12" OC (0'-8" MAX) A (2'-0" MAX) B 2" TYP
