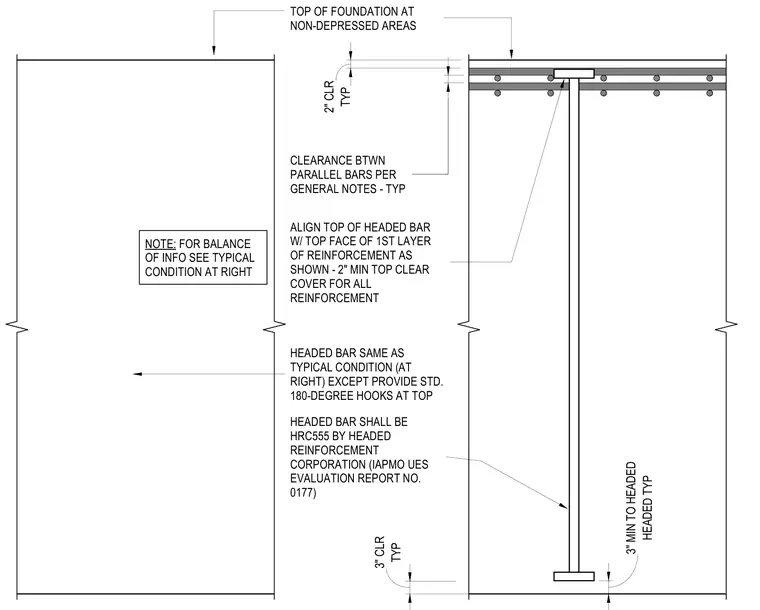

Concrete mat foundation reinforcement features headed rebar configurations and standard hooks. The headed bars align with the top face of the first layer of reinforcement, maintaining a two-inch minimum top clear cover. Parallel bar clearance follows general notes, and headed bars are HRC555 by Headed Reinforcement Corporation per IAPMO UES evaluation report number 0177. A three-inch minimum clearance is maintained to the headed ends.
ALIGN TOP OF HEADED BAR W/ TOP FACE OF 1ST LAYER OF REINFORCEMENT AS SHOWN - 2" MIN TOP CLEAR COVER FOR ALL REINFORCEMENT HEADED BAR SAME AS TYPICAL CONDITION (AT RIGHT) EXCEPT PROVIDE STD. 180-DEGREE HOOKS AT TOP HEADED BAR SHALL BE HRC555 BY HEADED REINFORCEMENT CORPORATION (IAPMO UES EVALUATION REPORT NO. 0177) CLEARANCE BTWN PARALLEL BARS PER GENERAL NOTES - TYP NOTE: FOR BALANCE OF INFO SEE TYPICAL CONDITION AT RIGHT TYP 3" CLR HEADED TYP 3" MIN TO HEADED TYP 2" CLR TOP OF FOUNDATION AT NON-DEPRESSED AREAS
