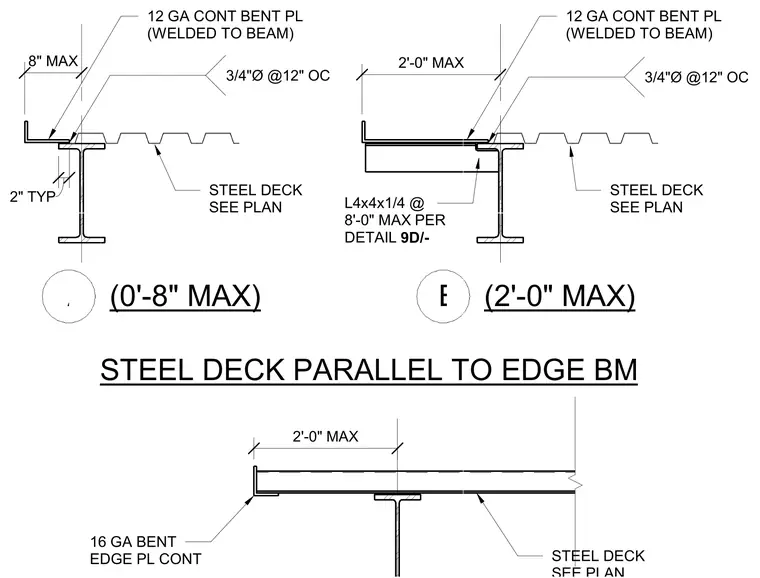

Steel deck runs parallel to the edge beam supported by a continuous twelve gauge bent plate welded to the beam flange. A sixteen gauge continuous bent edge plate forms the perimeter termination with maximum spans of eight inches and two feet. An alternate condition incorporates an L4x4x1/4 angle spaced at eight feet maximum per detail 9D. Three-quarter inch diameter studs are spaced at twelve inches on center.
STEEL DECK PARALLEL TO EDGE BM 16 GA BENT EDGE PL CONT STEEL DECK STEEL DECK SEE PLAN 12 GA CONT BENT PL (WELDED TO BEAM) 8" MAX 2'-0" MAX 3/4"Ø @12" OC STEEL DECK SEE PLAN 12 GA CONT BENT PL (WELDED TO BEAM) 2'-0" MAX L4x4x1/4 @ 8'-0" MAX PER DETAIL 9D/- 3/4"Ø @12" OC (0'-8" MAX) A (2'-0" MAX) B 2" TYP
