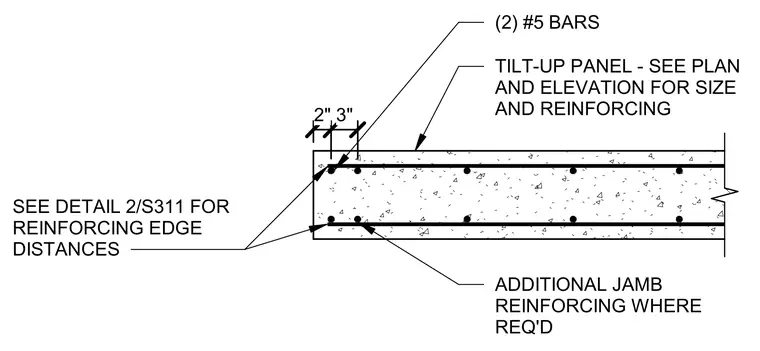

Reinforcing configuration at the edge of a tilt-up concrete panel. Two number five reinforcing bars are positioned at the jamb, with specific edge distances of two inches and three inches indicated. The panel thickness and primary reinforcing are sized per the project plan and elevation. Additional jamb reinforcing is provided where required, and reinforcing edge distances are governed by detail 2/S311.
